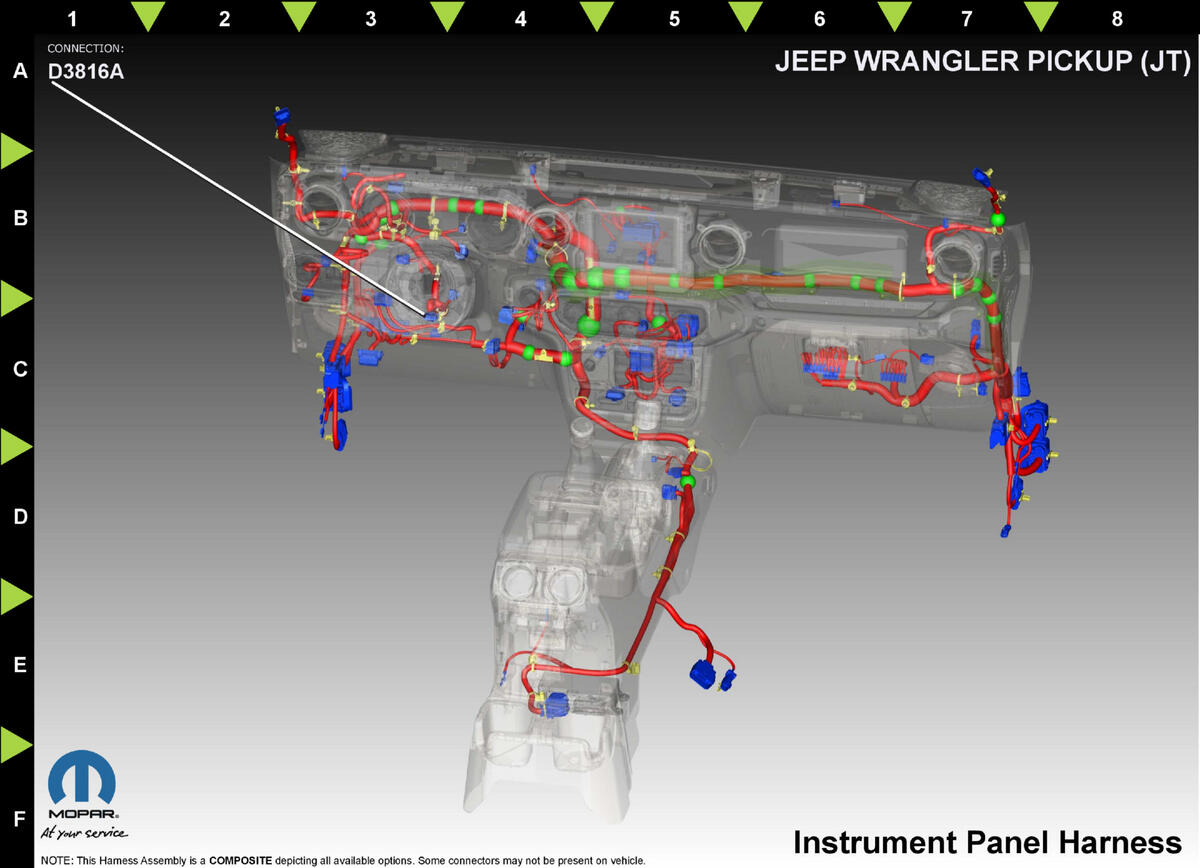

Module-Steering Column Control C1 (Standard) Connector End View (D3816A)
Harness-Family: IP
Color: YELLOW
Gender: FEMALE
Part Number: 1924393-1_1924396-1
Part Description: Not Available
Connector No: D3816A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 3 | C91 | DB/GN | 1.0 | HEATED STEERING WHEEL FEED | HEATED STEERING WHEEL | ||
| 4 | C986 | GY/DB | 1.0 | HEATED STEERING WHEEL RETURN | HEATED STEERING WHEEL | ||
