Module-Steering Column Control C4 (Standard) Connector End View (D3816D)

Harness-Family: Steering_Wheel

Color: WHITE

Gender: FEMALE

Part Number: 174463-1

Part Description: Not Available

Connector No: D3816D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C4 Connector End View (Standard)

Courtesy of CHRYSLER

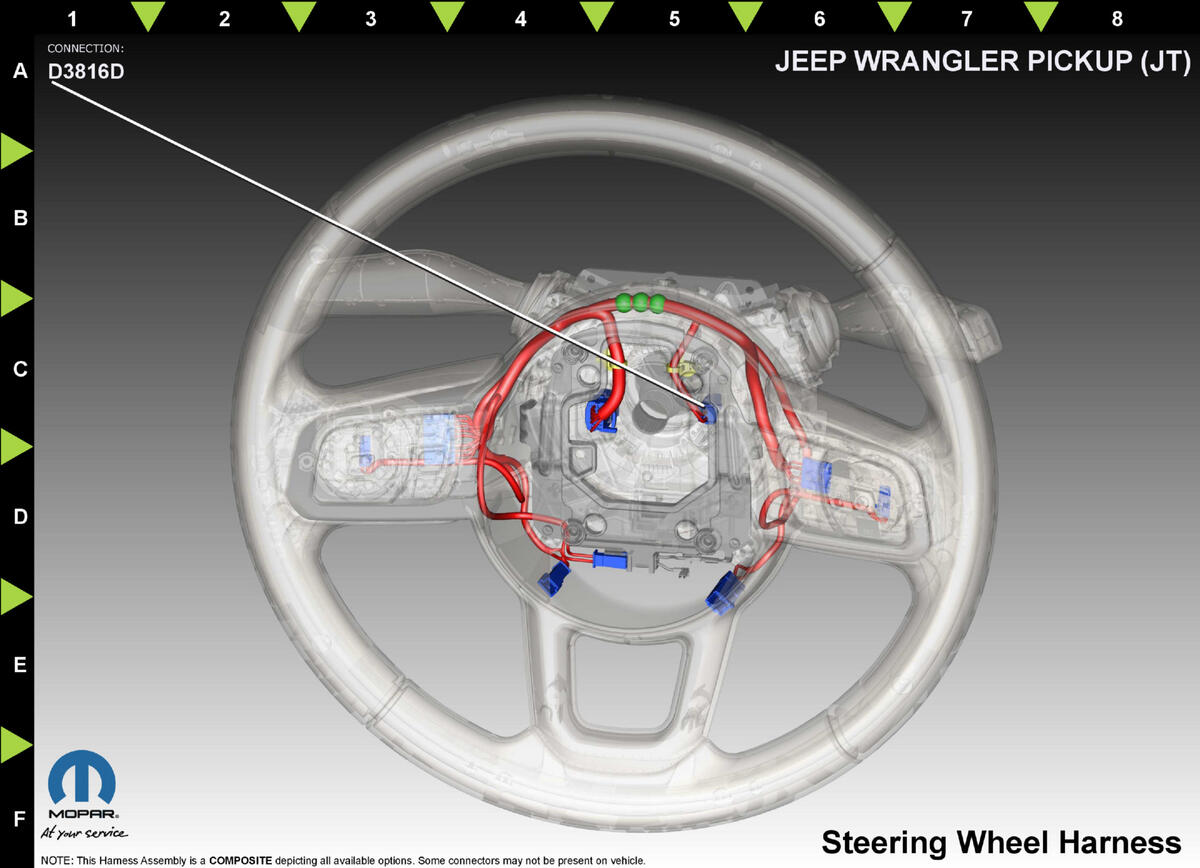

Fig 2: Module-Steering Column Control C4 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C91

0.35

HEATED STEERING WHEEL FEED

N/A

C986

0.35

HEATED STEERING WHEEL RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
