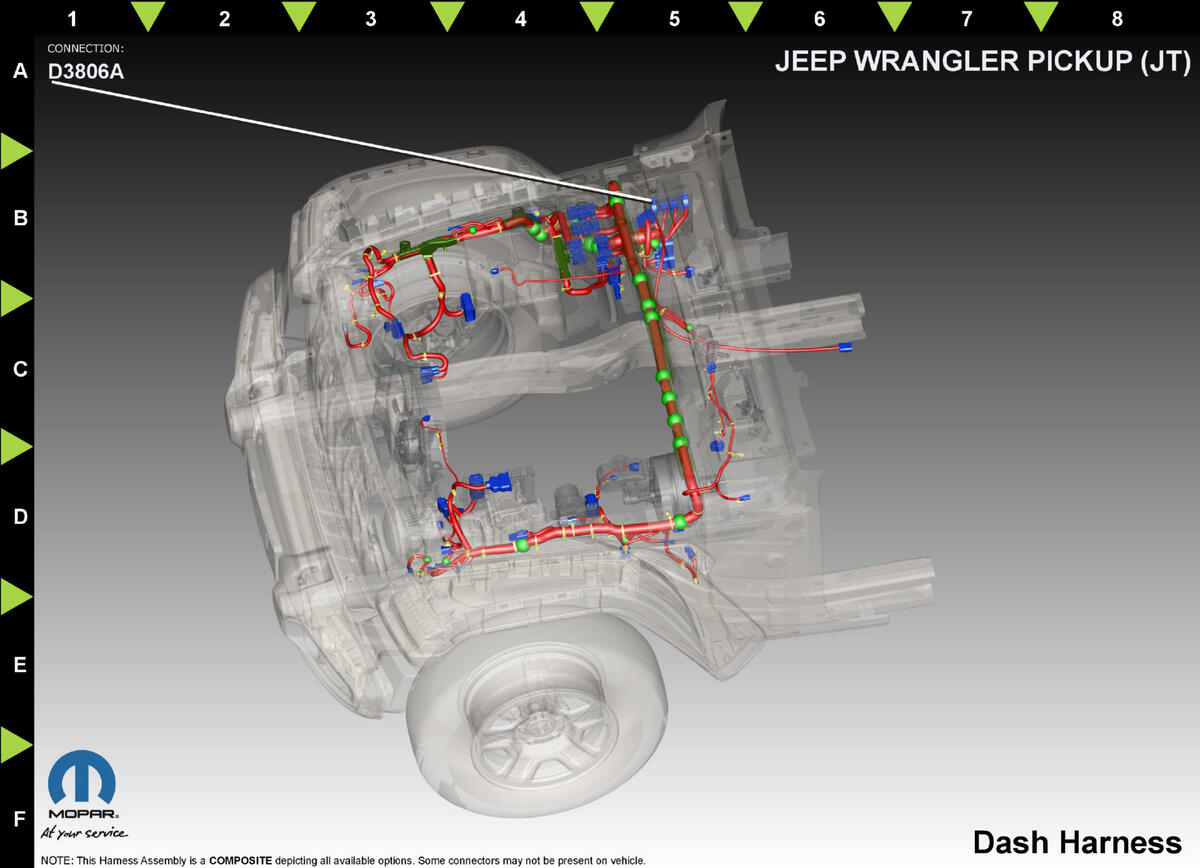

Module-Body Control C1/A (Standard) Connector End View (D3806A)
Harness-Family: Dash
Color: BLACK
Gender: FEMALE
Part Number: 13850155_13850159
Part Description: Not Available
Connector No: D3806A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | L89 | WH/YE | 0.75 | LEFT FRONT FOG LAMP CONTROL | N/A | ||
| 2 | L34 | WH/GY | 1.5 | RIGHT HIGH BEAM DRIVER | N/A | ||
| 3 | L43 | WH/DB | 1.5 | LEFT LOW BEAM DRIVER | N/A | ||
| 4 | L77 | WH/BN | 0.75 | LEFT FRONT PARK LAMP DRIVER | N/A | ||
| 5 | L118 | BG/OG | 0.50 | RIGHT FRONT PARK LAMP DRIVER | EXCEPT EXPORT PREMIUM | ||
| 5 | L160 | WH/BG | 0.35 | TURN SIGNAL CONTROL | EXPORT ONLY | ||
| 6 | W7 | BN/GY | 0.50 | WIPER PARK SWITCH SENSE | N/A | ||
| 7 | L117 | BG/DB | 0.50 | LEFT FRONT PARK LAMP DRIVER | EXCEPT EXPORT PREMIUM | ||
| 7 | L161 | WH/GN | 0.35 | TURN SIGNAL CONTROL | EXPORT ONLY | ||
| 8 | W1 | BN/BG | 0.50 | WASHER FLUID LEVEL SWITCH SENSE | N/A | ||
| 9 | W11 | BN/VT | 0.50 | LOW WASH SW RTN 1 | N/A | ||
| 10 | L145 | WH/OG | 0.75 | LEFT SIDE MARKER CONTROL | N/A | ||
| 11 | G70 | VT/BU | 0.50 | HOOD AJAR SWITCH SENSE | N/A | ||
| 12 | W8 | BN/BU | 0.35 | WIPER ON/OFF RELAY CONTROL | N/A | ||
| 13 | L60 | WH/BG | 0.75 | RIGHT FRONT TURN LAMP DRIVER | N/A | ||
| 14 | W39 | BN/VT | 0.50 | FRONT CAMERA WASHER PUMP MOTOR CONTROL | N/A | ||
| 15 | W18 | BN | 0.50 | FRONT WASHER PUMP MOTOR CONTROL | N/A | ||
| 18 | K617 | BN | 0.35 | RUN/START RELAY CONTROL | N/A | ||
| 20 | W2 | BN/GN | 0.35 | WIPER HIGH/LOW RELAY CONTROL | N/A | ||
| 22 | L59 | WH/DB | 0.75 | RIGHT DRL LAMP DRIVER | N/A | ||
| 23 | X4 | DG/WH | 0.35 | HORN RELAY CONTROL | N/A | ||
| 24 | F1 | PK/WH | 0.75 | IGNITION OFF/RUN/START CONTROL OUTPUT | N/A | ||
|
|||||||
