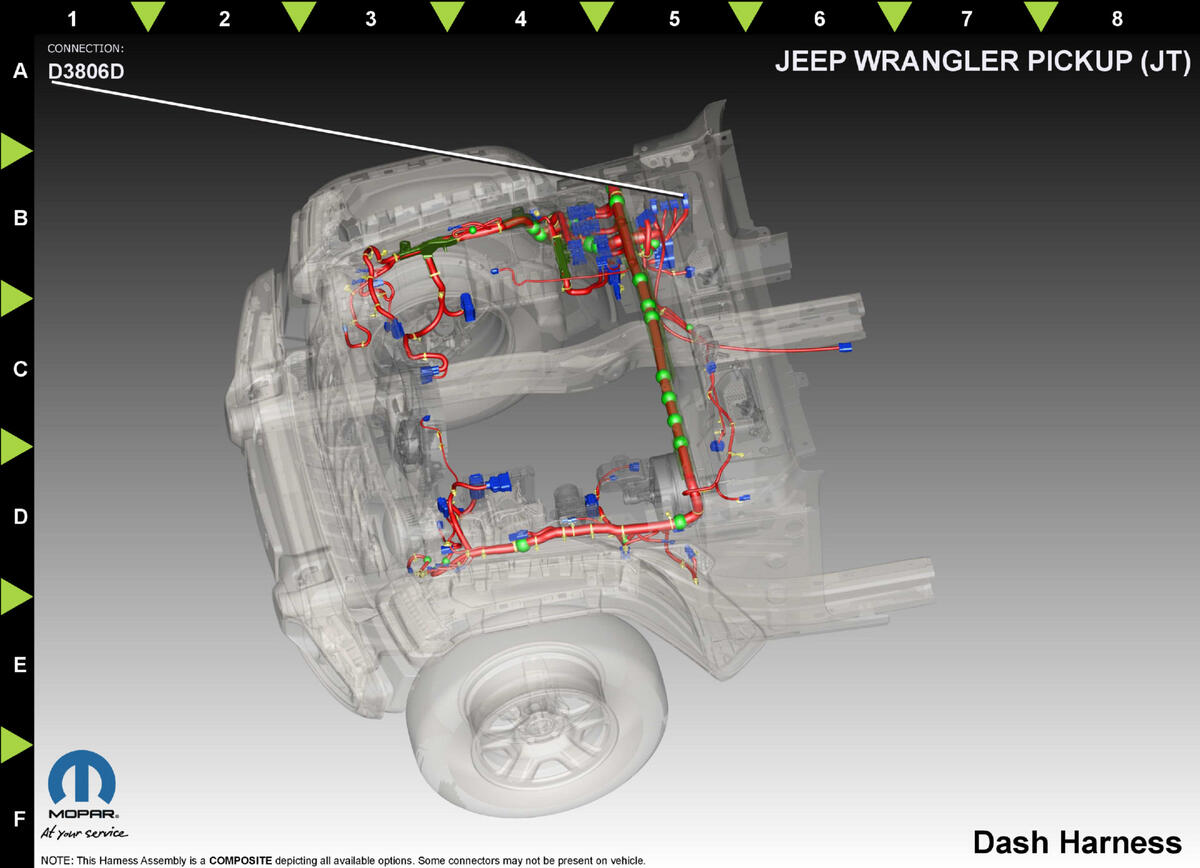

Module-Body Control C4/D (Standard) Connector End View (D3806D)
Harness-Family: Dash
Color: NATURAL
Gender: FEMALE
Part Number: 13850156_13850159
Part Description: Not Available
Connector No: D3806D
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | L33 | WH/GN | 1.5 | LEFT HIGH BEAM DRIVER | N/A | ||
| 2 | L44 | WH/BG | 1.5 | RIGHT LOW BEAM DRIVER | N/A | ||
| 3 | L78 | WH/OG | 0.75 | RIGHT FRONT PARK LAMP DRIVER | N/A | ||
| 5 | L144 | BG/OG | 0.75 | RIGHT SIDE MARKER CONTROL | BASE | ||
| 7 | K88 | BN/BG | 0.35 | STOP/START RELAY CONTROL | N/A | ||
| 12 | P408 | BG | 0.35 | POWER MIRROR RELAY CONTROL | N/A | ||
| 13 | L90 | WH/OG | 0.75 | RIGHT FRONT FOG LAMP CONTROL | N/A | ||
| 14 | L61 | WH/GN | 0.75 | LEFT FRONT TURN LAMP DRIVER | N/A | ||
| 15 | L58 | WH/YE | 0.75 | LEFT DRL LAMP DRIVER | N/A | ||
| 18 | B15 | DG/WH | 0.35 | BRAKE SIGNAL 1 | N/A | ||
| 19 | Z420 | BK/OG | 0.50 | GROUND | N/A | ||
| 21 | B20 | DG/OG | 0.50 | BRAKE FLUID LEVEL SIGNAL | N/A | ||
| 22 | G31 | VT/GN | 0.50 | AAT SIGNAL | N/A | ||
| 23 | G931 | VT/BN | 0.50 | SENSOR GROUND | N/A | ||
| 24 | T824 | YE/DB | 0.35 | TRS PARK SIGNAL | N/A | ||
|
|||||||
