Module-Body Control C5/E (Standard) Connector End View (D3806E)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13850164_13850160_13850161

Part Description: Not Available

Connector No: D3806E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

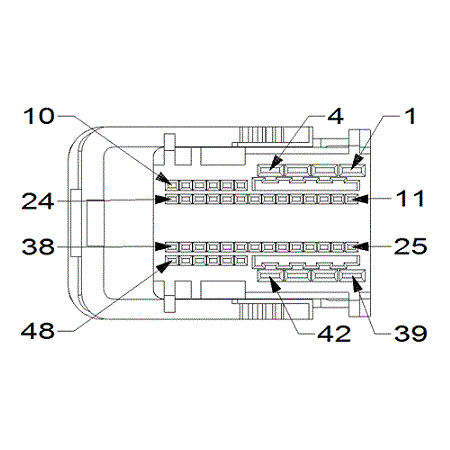

Fig 1: Module-Body Control C5/e Connector End View (Standard)

Courtesy of CHRYSLER

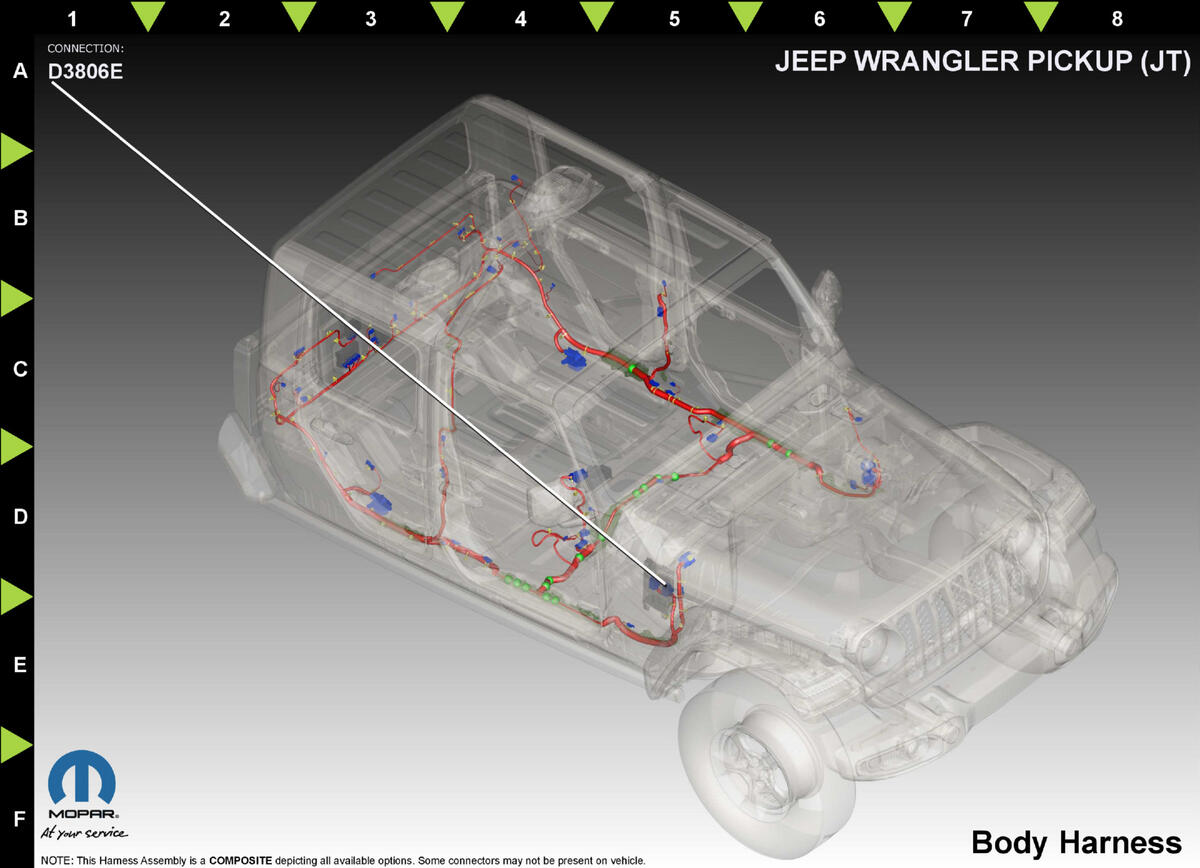

Fig 2: Module-Body Control C5/e Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L16

WH/VT

0.75

RIGHT BACKUP LAMP DRIVER

N/A

0.75

RIGHT STOP/TURN FEED

EXCEPT EXPORT

L54

WH/GN

0.75

RIGHT STOP LAMP DRIVER

EXPORT

L63

WH/DG

0.75

LEFT REAR TURN LAMP DRIVER

EXPORT

L72

WH/OG

0.75

RIGHT REAR PARK LAMP DRIVER

N/A

G76

VT/YE

0.35

RIGHT REAR DOOR AJAR SWITCH SENSE

N/A

P305

GN/BU

0.35

ACCESSORY DELAY RELAY CONTROL

N/A

P307

GN/GY

0.35

ACCESSORY DELAY RELAY CONTROL

N/A

C902

0.50

ELECTRIC WINDSHIELD WIPER DE-ICER CONTROL

N/A

B25

DG/WH

0.35

PARK BRAKE SWITCH SENSE

N/A

Q997

OG/VT

0.50

ROOF PRESENCE DETECTION SENSE

N/A

G109

0.50

FUEL LEVEL SENSE RETURN

N/A

DB/WH

0.75

FUEL LEVEL SENSOR SIGNAL

N/A

WH/DB

0.50

LICENSE PLATE LAMP DRIVER

N/A

L656

WH/DG

0.35

RIGHT REAR TURN SIGNAL CONTROL

EXCEPT EXPORT

L658

WH/BN

0.35

TRAILER TOW BACKUP LAMP RELAY CONTROL

EXCEPT EXPORT

L657

WH/GN

0.35

TRAILER TOW TAIL LAMP RELAY CTRL

EXCEPT EXPORT

D45

0.35

CAN C (+)

N/A

D46

0.35

CAN C (-)

N/A

F20

PK/WH

0.35

IGNITION RUN/START CONTROL OUTPUT

N/A

G755

VT/BG

0.35

DRIVER DOOR SECONDARY AJAR SWITCH SENSE

N/A

K619

BN/OG

0.35

IGNITION RUN CONTROL OUTPUT

N/A

L898

WH/DG

0.75

FOG RR LAMP FEED 2

N/A

D403

OG/DB

0.35

LIN BUS CBC 3

N/A

⁽¹⁾	Pins not listed are not used for this connector
