Module-Body Control C6/F (Standard) Connector End View (D3806F)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 13850165_13850160_13850161

Part Description: Not Available

Connector No: D3806F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C6/f Connector End View (Standard)

Courtesy of CHRYSLER

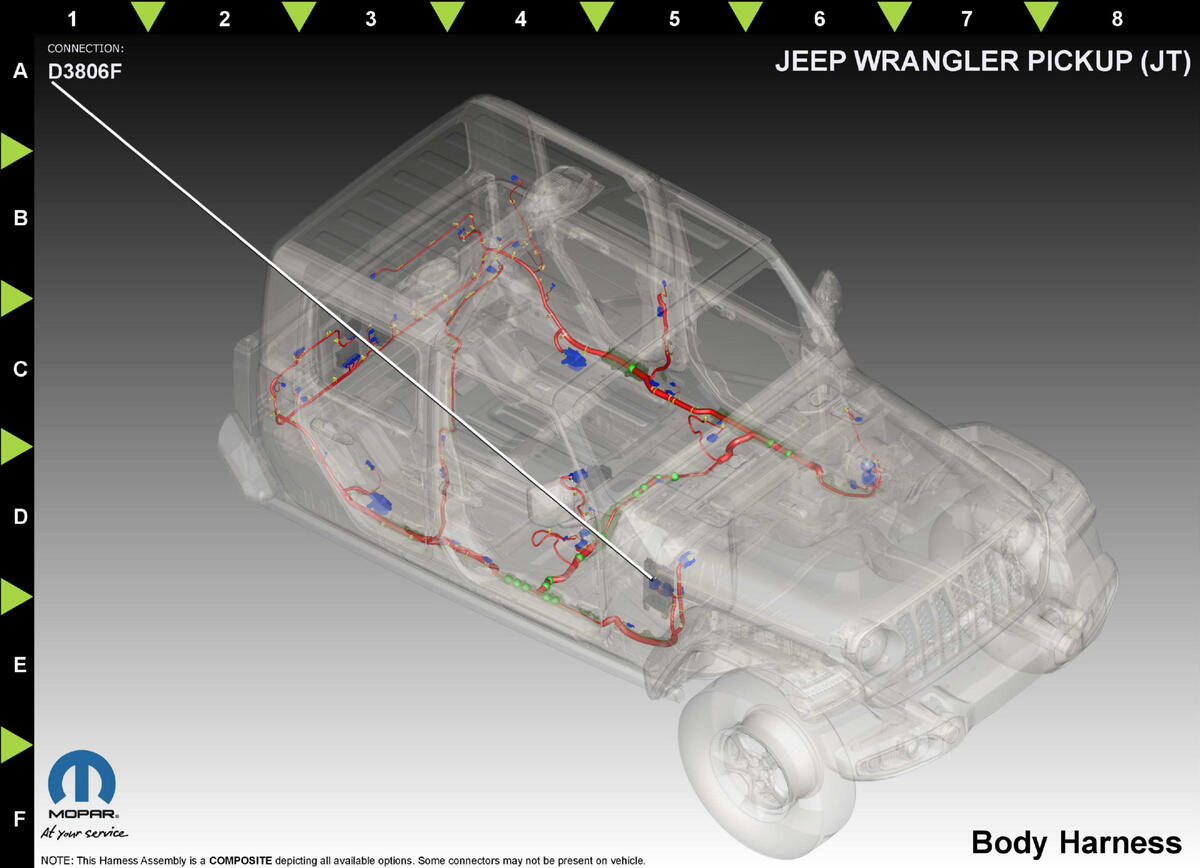

Fig 2: Module-Body Control C6/f Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P910

BG/GN

0.75

FRONT DRIVER DOOR UNLOCK

N/A

P777

GN/DG

0.75

DOOR LOCK CONTROL

N/A

P292

VT/GN

0.75

DOOR UNLOCK CONTROL

N/A

L899

WH/OG

0.75

REAR FOG LAMP FEED

EXPORT

L19

BG/WH

0.50

CARGO LAMP DRIVER

N/A

G75

0.35

DRIVER DOOR AJAR SWITCH SENSE

N/A

P371

BG/BN

0.35

DOOR LOCK SW RTN DRIV

N/A

G161

VT/DG

0.35

LEFT DOOR LOCK SWITCH STATUS

N/A

G160

VT/GN

0.35

RIGHT DOOR LOCK SWITCH STATUS

N/A

G77

VT/GY

0.50

LEFT REAR DOOR AJAR SWITCH SENSE

N/A

P372

BG/OG

0.35

DOOR LOCK SW RTN PASS

N/A

L551

BG/BN

0.35

LEFT FRONT LIGHTING FAULT SENSE

N/A

L563

WH/GY

0.35

LEFT REAR LIGHTING FAULT SENSE

N/A

L552

BG/OG

0.35

RIGHT FRONT LIGHTING FAULT SENSE

N/A

DG/VT

0.35

HORN SWITCH SENSE

N/A

P221

GN/BG

0.75

TAILGATE LOCK

N/A

L562

WH/BG

0.35

RIGHT REAR LIGHTING FAULT SENSE

N/A

L71

WH/GY

0.75

LEFT REAR PARK LAMP DRIVER

N/A

P220

GN/WH

0.75

TAILGATE UNLOCK

N/A

P806

GN/WH

0.35

INVERTER STATUS INDICATOR DRIVER

N/A

P807

GN/BU

0.35

INVERTER SWITCH SIGNAL

EXCEPT EXPORT

P827

GN/DB

0.35

INVERTER SWITCH SIGNAL

EXPORT

L655

WH/OG

0.35

LEFT REAR TURN SIGNAL CONTROL

EXCEPT EXPORT

L51

WH/DG

0.75

BRAKE LAMP SWITCH OUTPUT

N/A

0.75

LEFT STOP/TURN FEED

EXCEPT EXPORT

L52

0.75

LEFT STOP LAMP DRIVER

EXPORT

L15

WH/BG

0.75

LEFT BACKUP LAMP DRIVER

N/A

L62

WH/YE

0.75

RIGHT REAR TURN LAMP DRIVER

EXPORT

⁽¹⁾	Pins not listed are not used for this connector
