Module-Compass (Standard) Connector End View (D3865A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: HCMPB-04-K

Part Description: Not Available

Connector No: D3865A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Compass Connector End View (Standard)

Courtesy of CHRYSLER

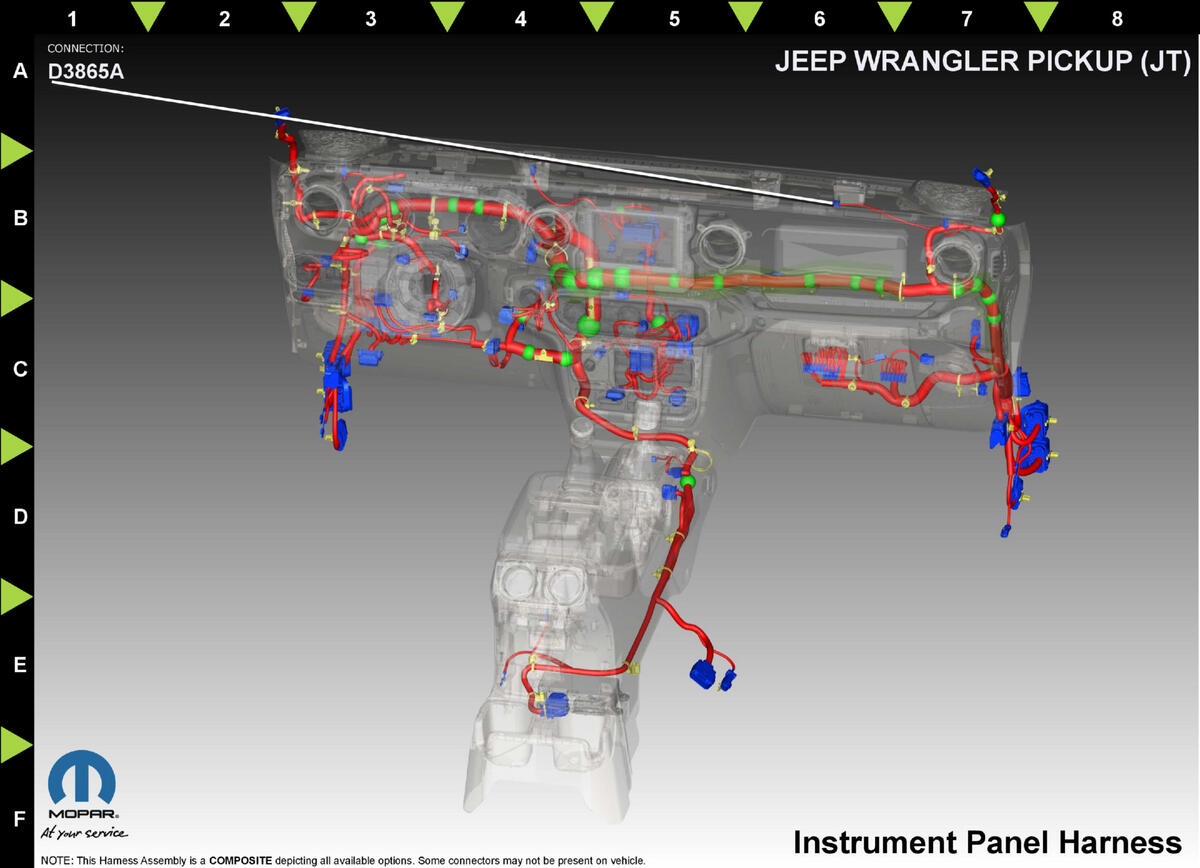

Fig 2: Module-Compass Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D402

OG/VT

0.50

LIN BUS CBC 2

N/A

Z912

BK/GN

0.50

GROUND

N/A

F982

PK/YE

0.50

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

⁽¹⁾	Pins not listed are not used for this connector
