Module-Drive Train Control C1 (Standard) Connector End View (D3872A)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 7283-6456-90

Part Description: Not Available

Connector No: D3872A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

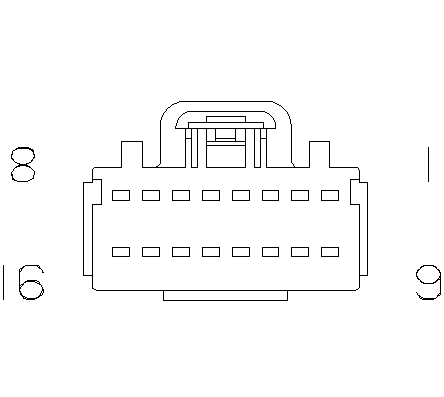

Fig 1: Module-Drive Train Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

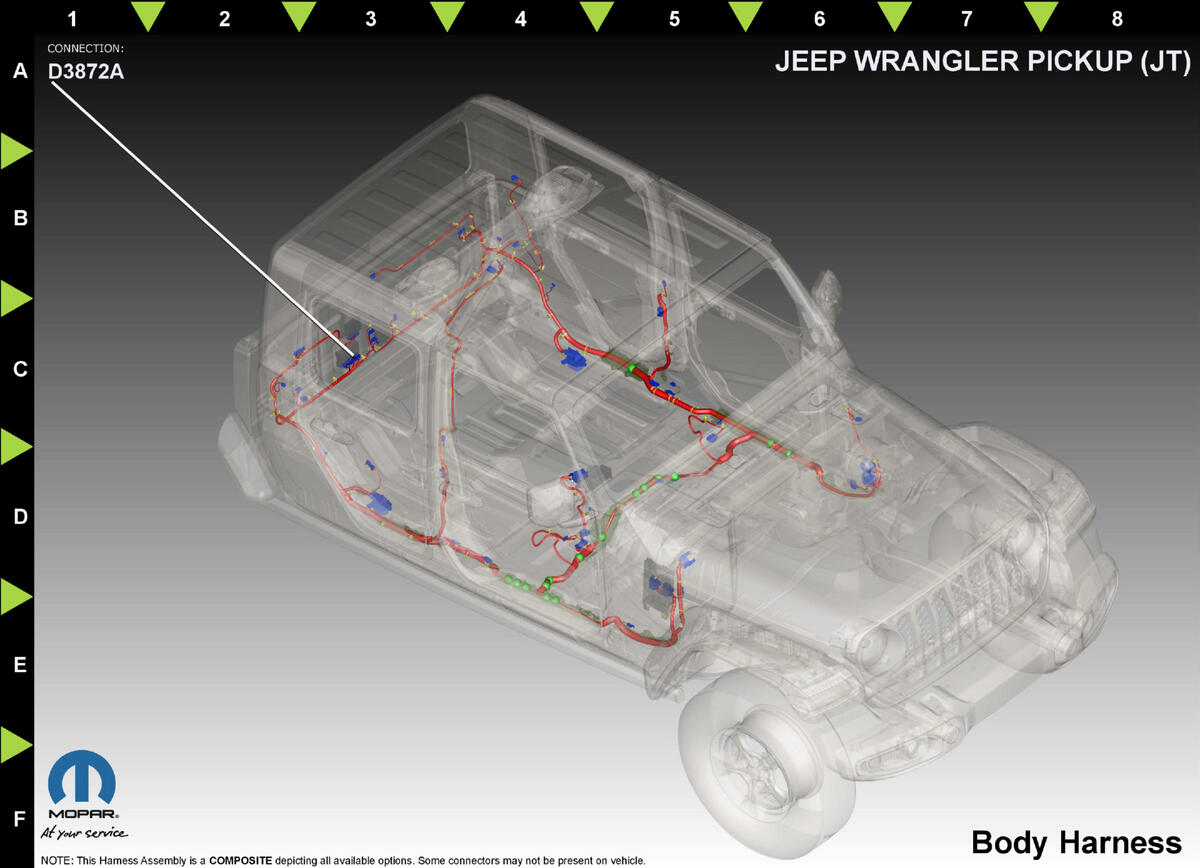

Fig 2: Module-Drive Train Control C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T301

DG/YE

0.75

SWITCHED BATTERY SOLENOID SUPPLY

EXPORT

T307

YE/DB

0.35

TRANSFER CASE ENCODER SIG 0

EXPORT

F946

PK/GN

0.75

FUSED IGNITION RUN/START CONTROL OUTPUT

N/A

D302

0.35

CAN C (-)

N/A

D301

0.35

CAN C (+)

N/A

K77

BN/VT

0.35

TRANSFER CASE POSITION SENSOR INPUT

EXPORT

K977

BN/WH

0.35

MODE SELECT

N/A

T317

YE/BG

0.75

STEP MOTOR CONTROL D

EXPORT

K594

BN/GN

0.35

DRIVETRAIN SENSOR RETURN

EXPORT

K504

0.35

DRIVETRAIN 5 VOLT SUPPLY

EXPORT

T308

YE/BU

0.35

TRANSFER CASE ENCODER SIG 1

EXPORT

F525

DG/PK

0.50

FUSED IGNITION SWITCH OUTPUT (RUN)

N/A

G303

VT/DG

0.35

FRONT AXLE LOCK SIGNAL

N/A

G304

VT/DB

0.35

FRONT AXLE LOCK CONTROL

N/A

T314

YE/BU

0.35

TRANSFER CASE RANGE POSITION SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
