Module-Electronic Shift (Standard) Connector End View (D2734A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 34900-6140

Part Description: Not Available

Connector No: D2734A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

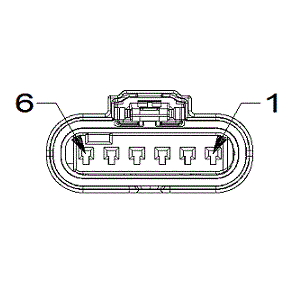

Fig 1: Module-Electronic Shift Connector End View (Standard)

Courtesy of CHRYSLER

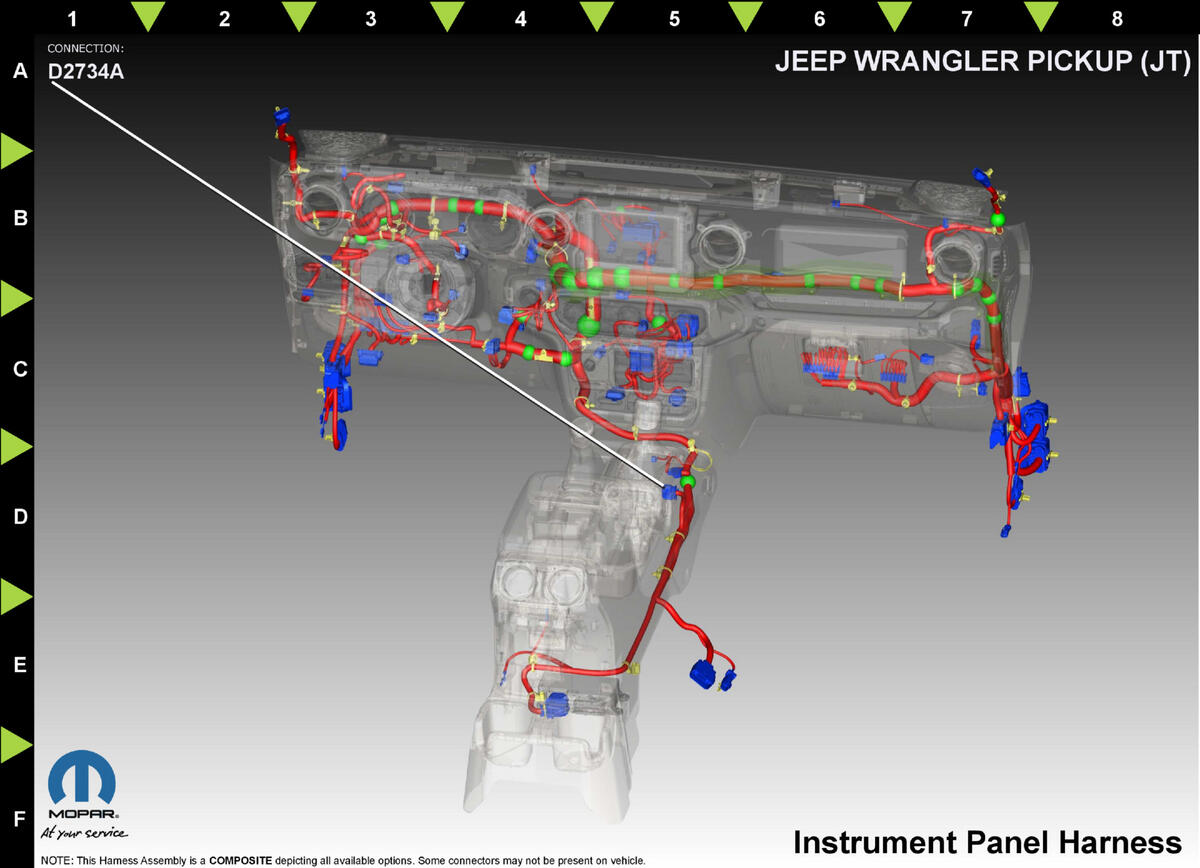

Fig 2: Module-Electronic Shift Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A195

RD/YE

0.50

FUSED B(+)

N/A

D441

WH/OG

0.35

DATA BUS(+) ESHIFT

N/A

D440

WH/BN

0.35

DATA BUS(-) ESHIFT

N/A

D429

0.35

CAN C (+)

N/A

D430

0.35

CAN C (-)

N/A

Z912

BK/OG

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
