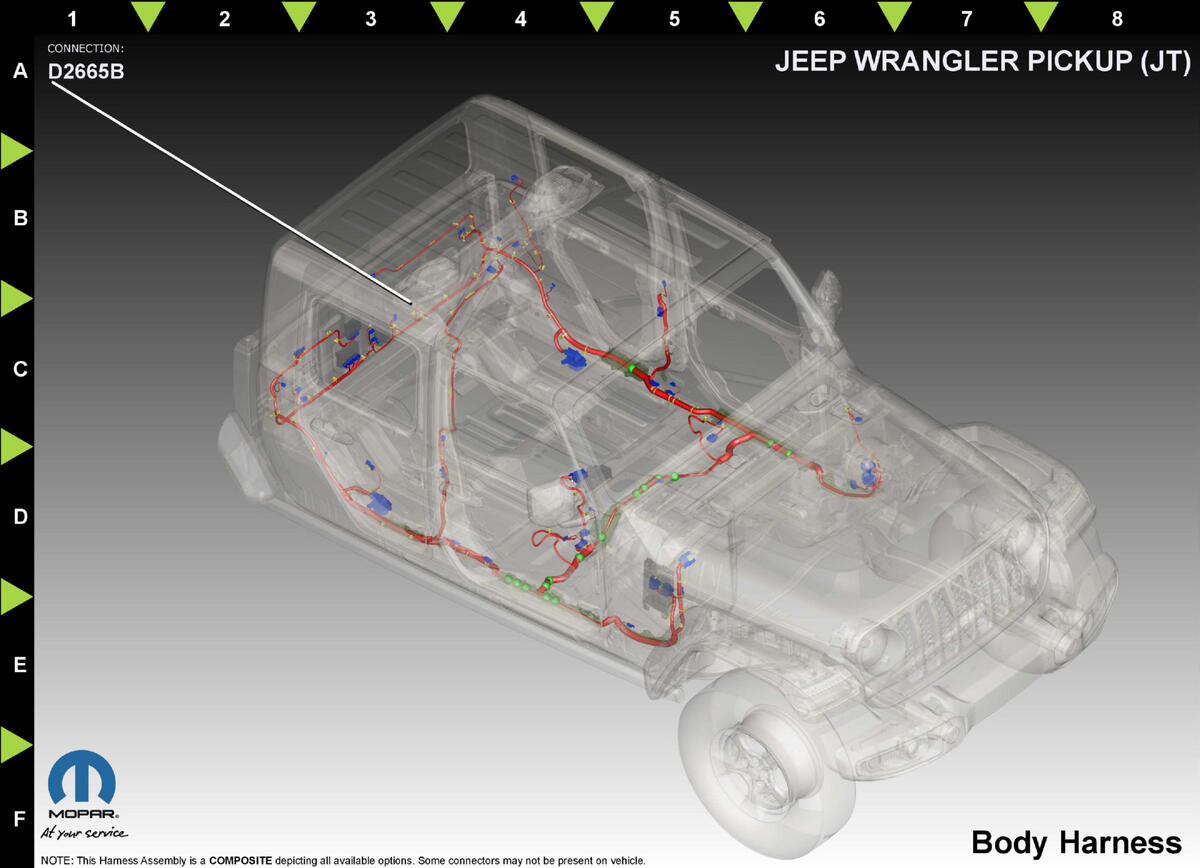

Module-Radio-Freq Hub C2 (Standard) Connector End View (D2665B)
Harness-Family: Body
Color: BLACK
Gender: FEMALE
Part Number: 2334713-1
Part Description: Not Available
Connector No: D2665B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 4 | P400 | GN/OG | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXCEPT EXPORT | ||
| 4 | P125 | GN/YE | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXPORT | ||
| 5 | D922 | GY/OG | 0.35 | PASSIVE ENTRY ANTENNA 2 SIGNAL | N/A | ||
| 6 | D924 | GY/YE | 0.35 | PASSIVE ENTRY ANTENNA 3 SIGNAL | N/A | ||
| 7 | D926 | GY/BU | 0.35 | PASSIVE ENTRY ANTENNA 4 SIGNAL | N/A | ||
| 12 | P401 | GN/VT | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXCEPT EXPORT | ||
| 12 | P124 | GN/WH | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXPORT | ||
| 13 | P400 | GN/OG | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXCEPT EXPORT | ||
| 13 | P125 | GN/YE | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE | EXPORT | ||
| 14 | P401 | GN/VT | 0.35 | RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXCEPT EXPORT | ||
| 14 | P124 | GN/WH | 0.35 | LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN | EXPORT | ||
| 15 | D920 | GY | 0.35 | PASSIVE ENTRY ANTENNA 1 SIGNAL | N/A | ||
| 16 | D921 | GY/BN | 0.35 | PASSIVE ENTRY ANTENNA 1 RETURN | N/A | ||
| 17 | D923 | GY/VT | 0.35 | PASSIVE ENTRY ANTENNA 2 RETURN | N/A | ||
| 18 | D925 | GY/DB | 0.35 | PASSIVE ENTRY ANTENNA 3 RETURN | N/A | ||
| 19 | D927 | GY/BG | 0.35 | PASSIVE ENTRY ANTENNA 4 RETURN | N/A | ||
|
|||||||
