Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1318774-2

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)

Courtesy of CHRYSLER

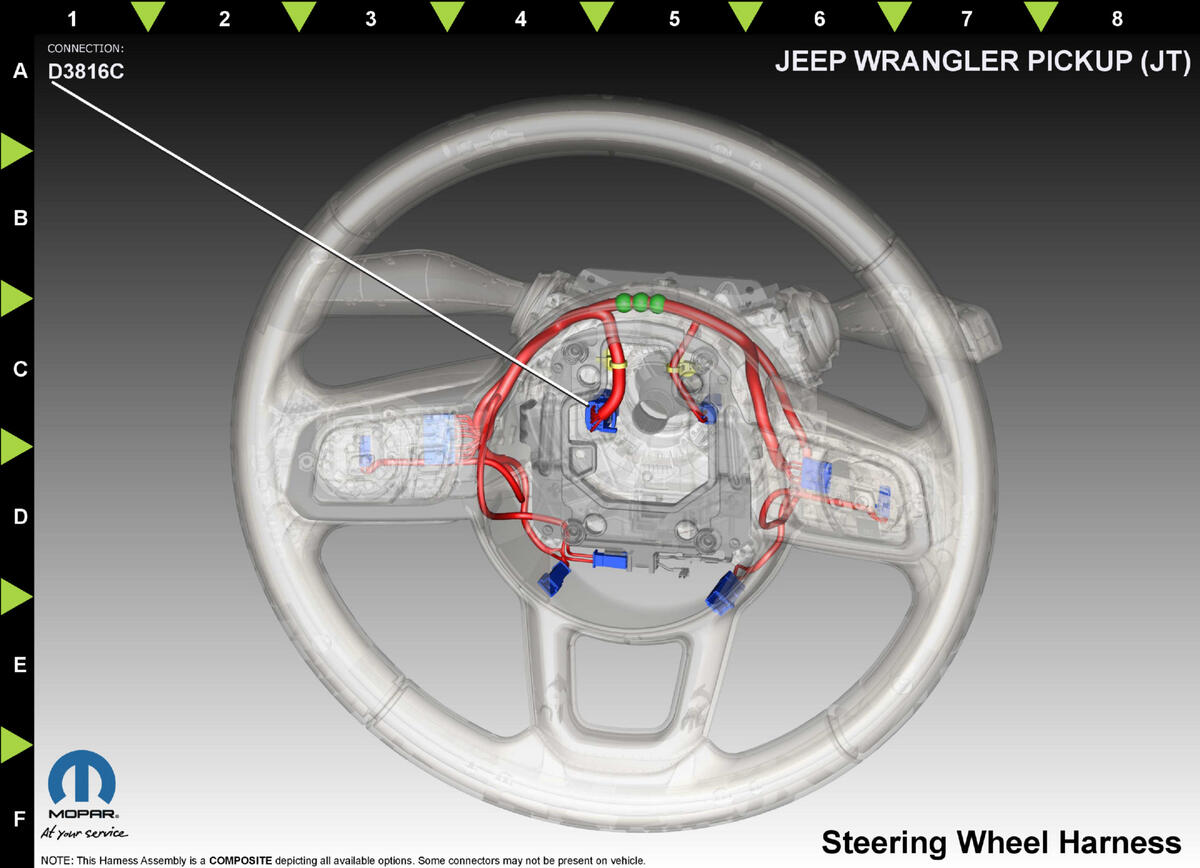

Fig 2: Module-Steering Column Control C3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A92

0.35

FUSED B(+)

N/A

DB/BK

0.35

HORN SWITCH SENSE

N/A

D592

OG/WH

0.35

LIN BUS

N/A

Z92

0.35

GROUND

N/A

D594

0.35

LIN BUS

N/A

⁽¹⁾	Pins not listed are not used for this connector
