Module-Transmission Control (Standard) Connector End View (D2735A)

Harness-Family: Transmission

Color: BLACK

Gender: FEMALE

Part Number: 09_4308_01

Part Description: Not Available

Connector No: D2735A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

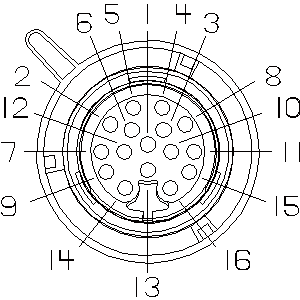

Fig 1: Module-Transmission Control Connector End View (Standard)

Courtesy of CHRYSLER

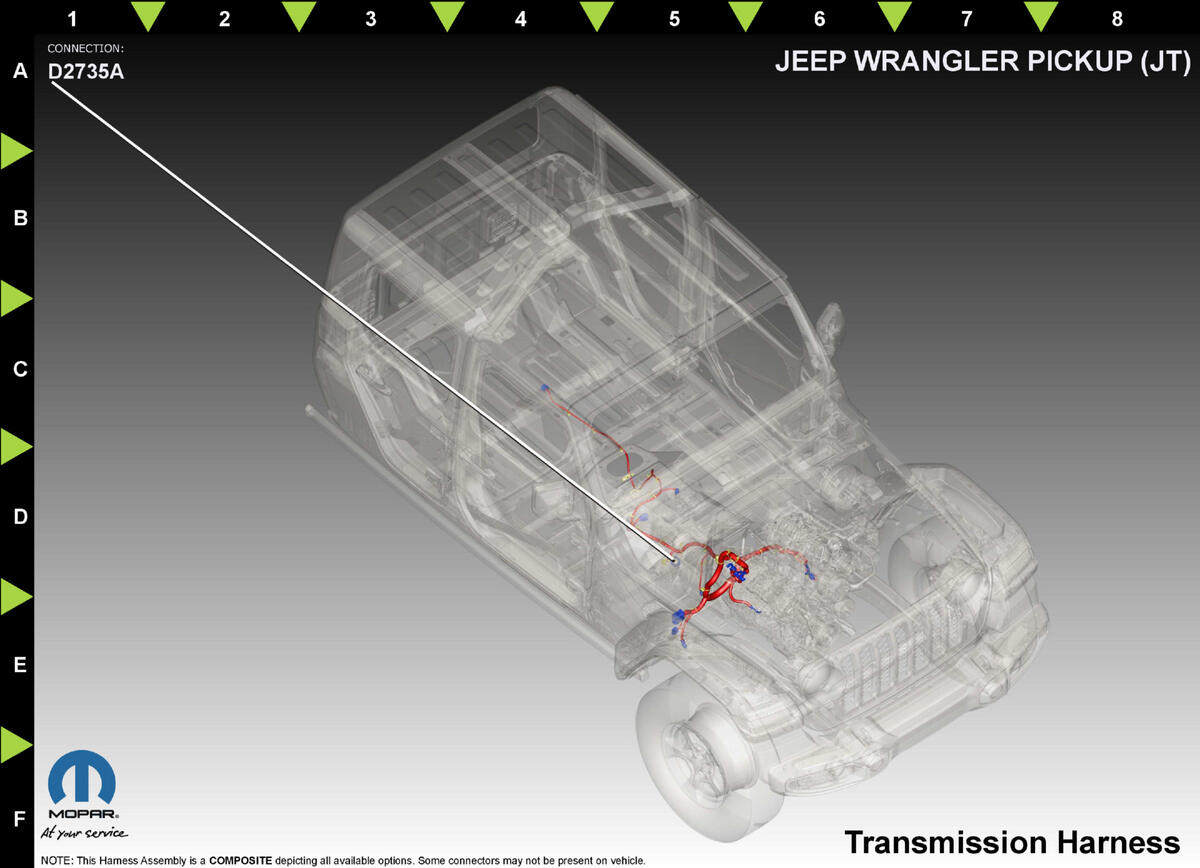

Fig 2: Module-Transmission Control Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D440

WH/BN

0.75

DATA BUS(-) ESHIFT

N/A

D441

WH/OG

0.75

DATA BUS(+) ESHIFT

N/A

D29

VT/WH

0.75

CAN C (+)

N/A

D30

0.75

CAN C (-)

N/A

PK/WH

0.75

IGNITION OFF/RUN/START CONTROL OUTPUT

N/A

A190

YE/RD

1.0

FUSED B(+)

N/A

Z909

2.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
