Relay-Rear Window Defogger (On PCB) (Standard) Connector End View (D821)

Harness-Family: PDC_Underhood

Color: NA

Gender: FEMALE

Part Number: NON-SERVICEABLE-PCB

Part Description: Not Available

Connector No: D821

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Rear Window Defogger (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

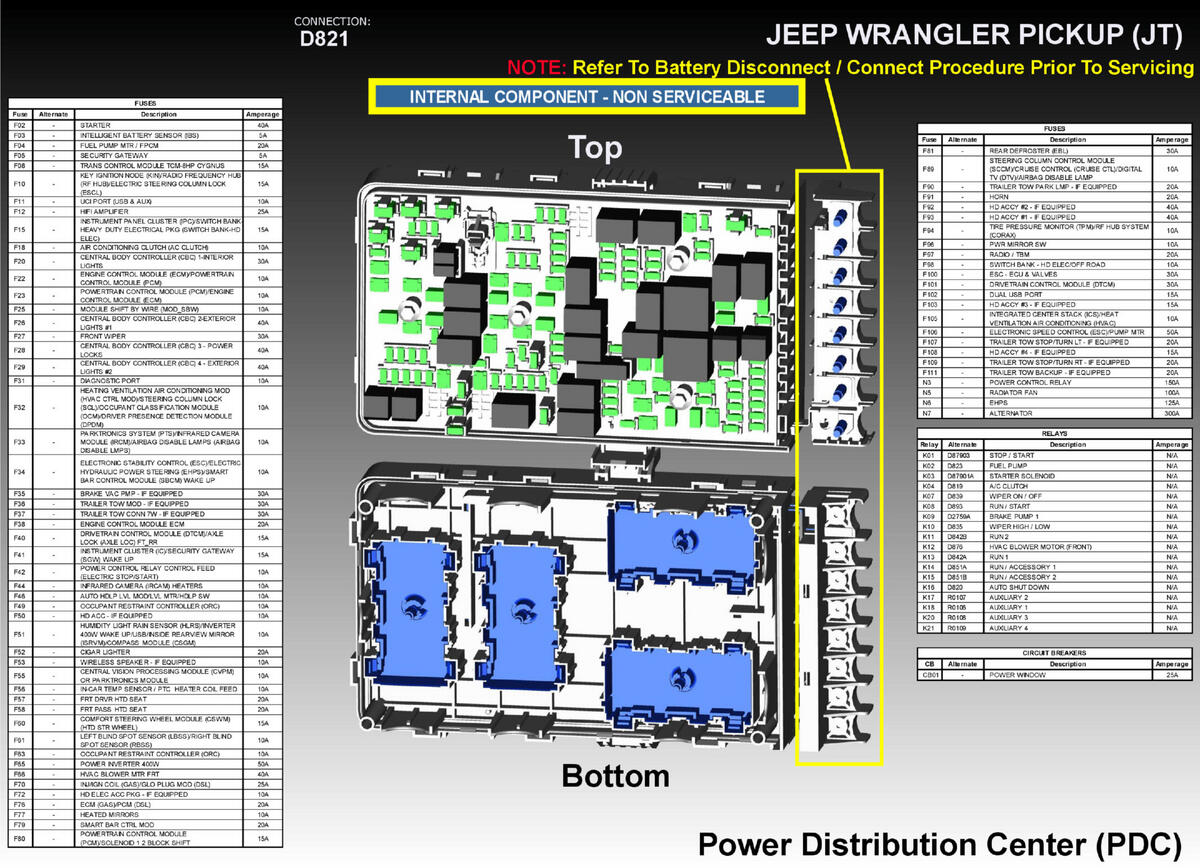

Fig 2: Relay-Rear Window Defogger (on Pcb) Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C115

INTERNAL

DEFOGGER RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
