Relay-Run/Start (Standard) Connector End View (D893)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: D893

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Run/start Connector End View (Standard)

Courtesy of CHRYSLER

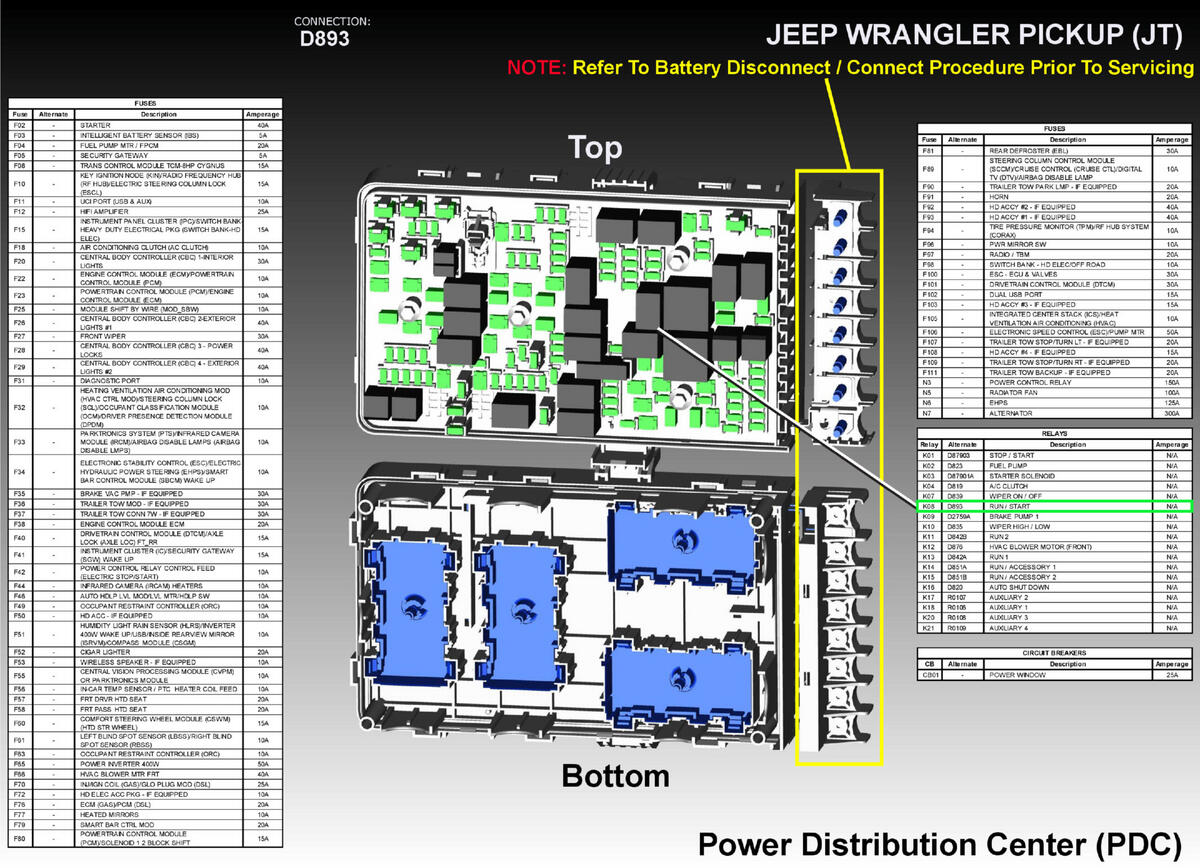

Fig 2: Relay-Run/start Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

INTERNAL

FUSED B(+)

N/A

Z906

INTERNAL

GROUND

N/A

K617

INTERNAL

RUN/START RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
