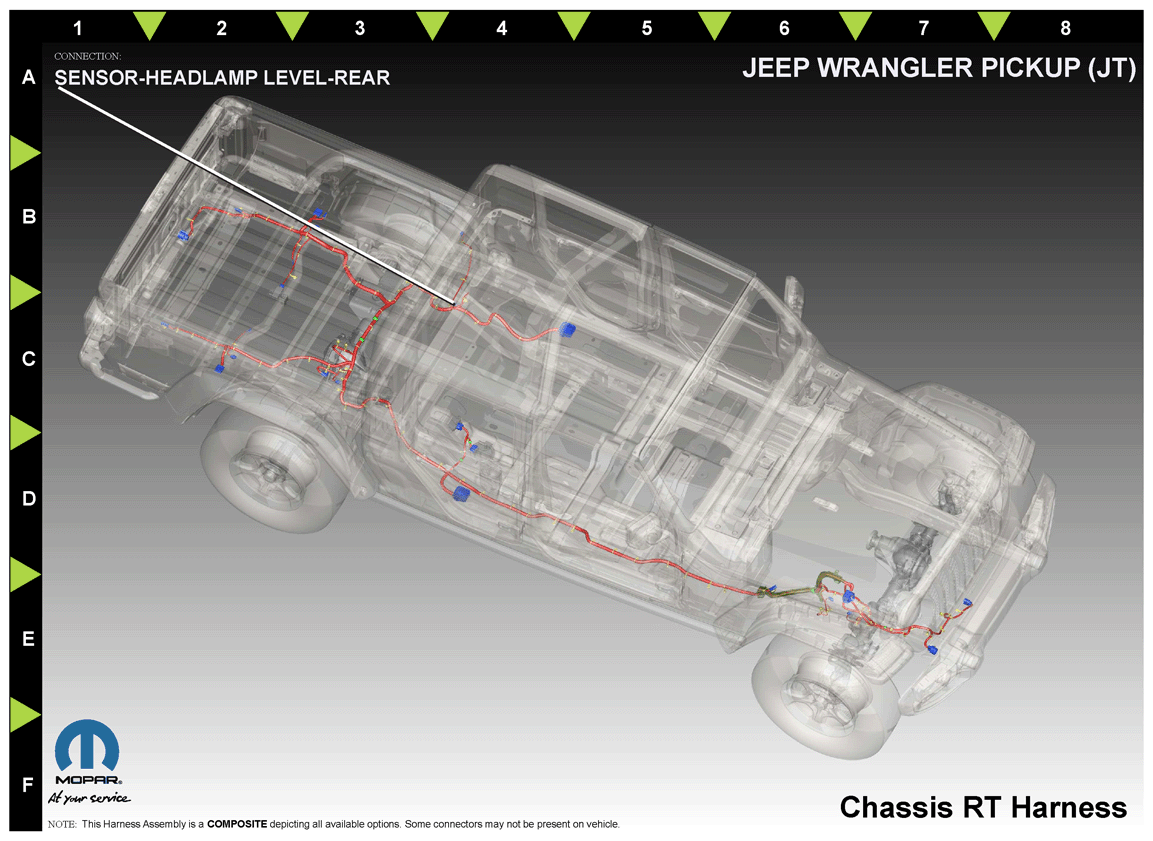

Sensor-Headlamp Level-Rear (Standard) Connector End View (D1637A)
Harness-Family: Chassis_RT
Color: GRAY
Gender: FEMALE
Part Number: 160073-3106
Part Description: Not Available
Connector No: D1637A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | F861 | WH/PK | 0.75 | HEADLAMP LEVELING SNSR 5V SUPPLY | N/A | ||
| 2 | L966 | WH/BK | 0.75 | HEADLAMP LEVELING SENSOR FRONT RETURN | N/A | ||
| 3 | L963 | WH/DB | 0.75 | HEADLAMP LEVELING SENSOR REAR SIGNAL | N/A | ||
|
|||||||
