Battery System: Notes
WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
 Courtesy of CHRYSLER GROUP, LLC
|

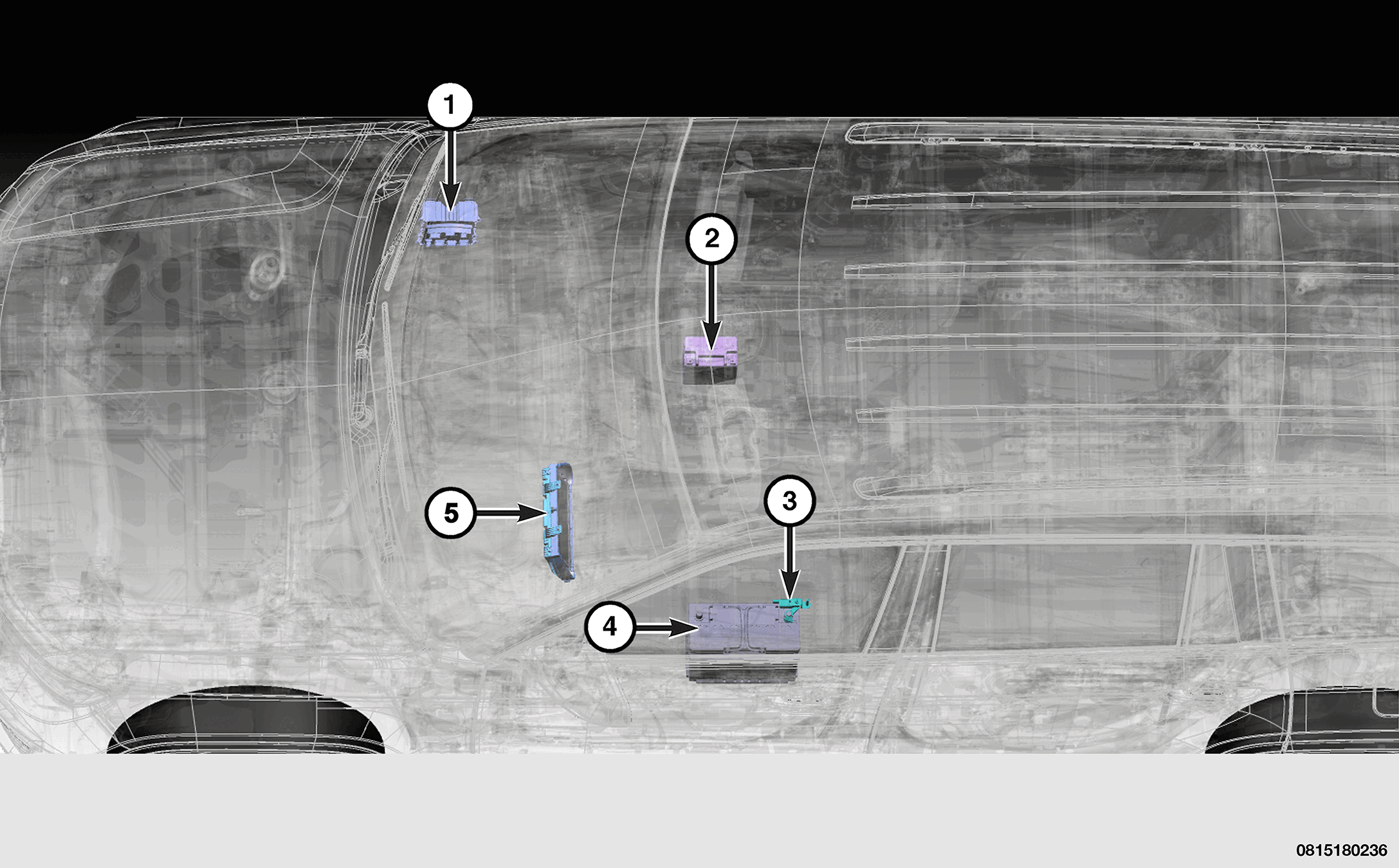

COMPONENT INDEX
| 1. |
Body Control Module (BCM) |
| 2. |
Auxiliary Battery |
| 3. |
Intelligent Battery Sensor (IBS) |
| 4. |
Main Battery |
| 5. |
Instrument Panel Cluster (IPC) |
