Dual Battery Switch Module (DBSM)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the right splash shield. Refer to SHIELD, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

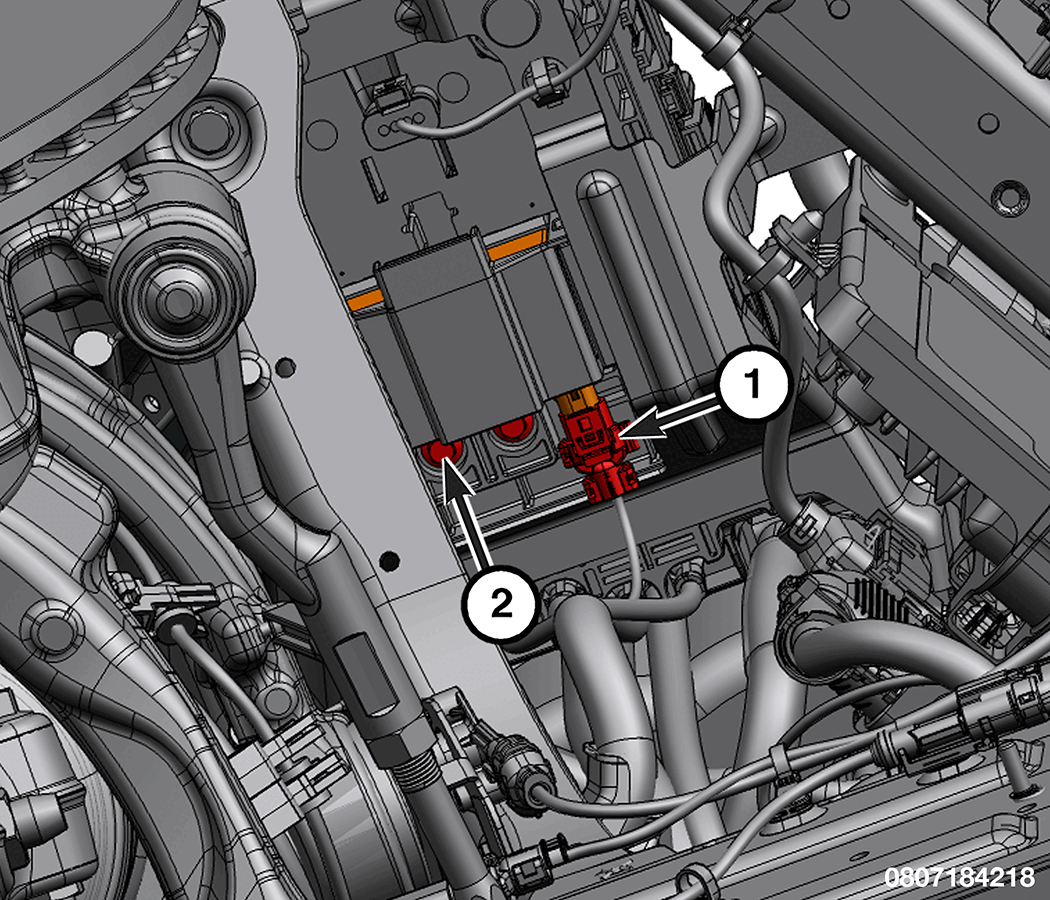

Disconnect the electrical connector (1).
Remove the bolts (2) that secure the Dual Battery Switch Module (DBSM) to the Power Distribution Center (PDC).

Courtesy of CHRYSLER GROUP, LLC

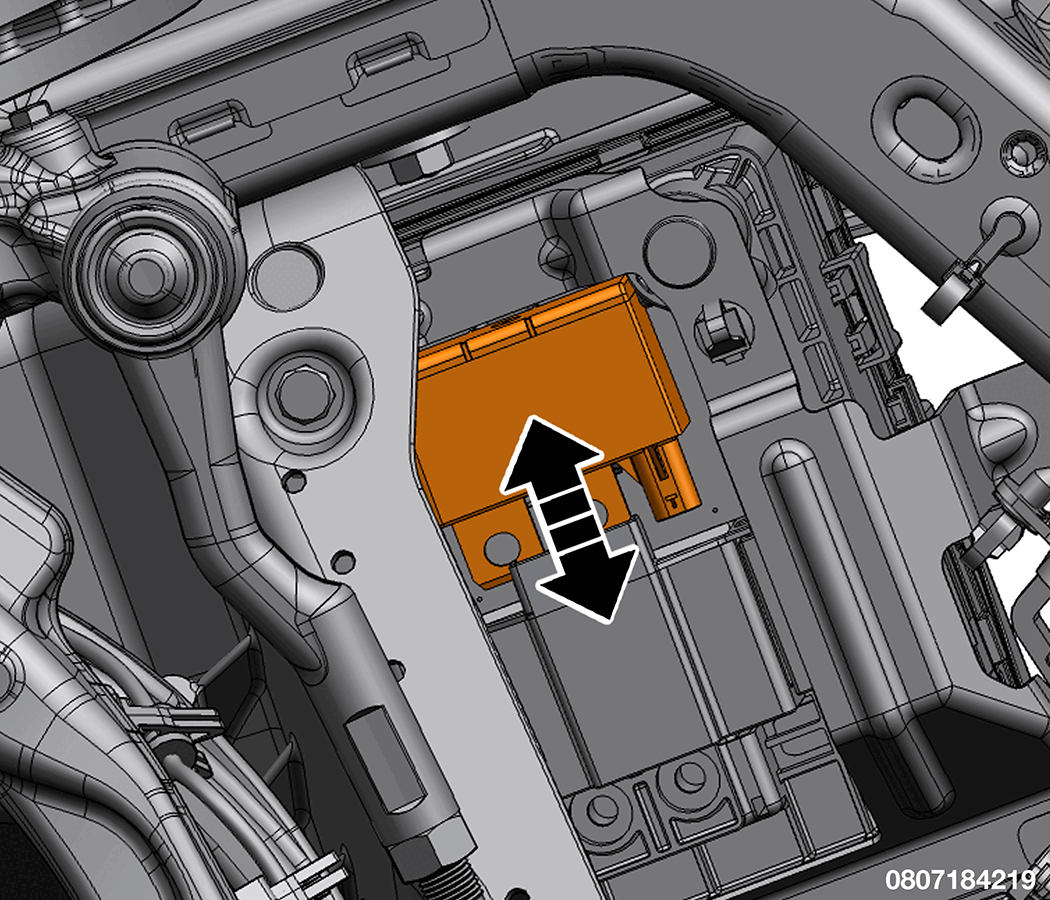

Slide the Module out of the PDC.

INSTALLATION

Install the DBSM into the PDC, and tighten the bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Connect the electrical connection.
Install the right splash shield. Refer to SHIELD, REMOVAL AND INSTALLATION .
