Pump, Water: Installation: 6.2L

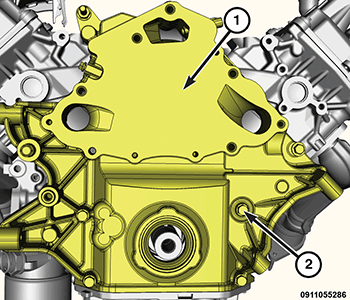

- Clean and inspect the mating surfaces of the timing chain cover (1) and the water pump.

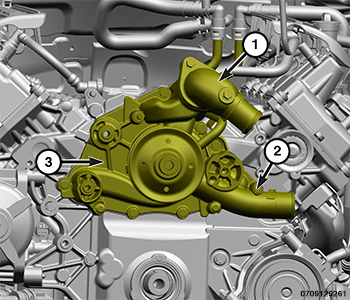

- Install the water pump (3) and tighten the bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS .
- Install the lower radiator hose.
- Install the upper radiator hose to the thermostat housing (1).

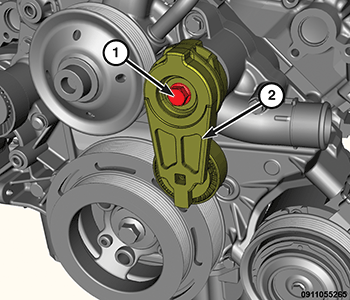

- Install the belt tensioner assembly (2) and tighten the bolt (1) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS
.

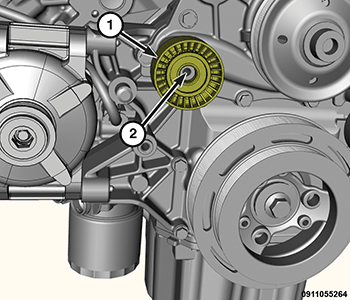

- Install the idler pulley (1) and tighten the bolt (2) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS .
- Connect the temperature sensor wire hire harness connector.

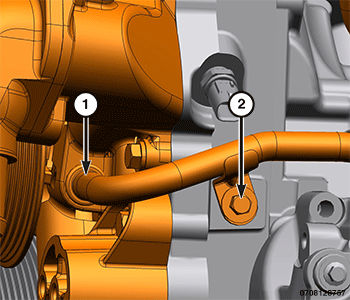

- Using a NEW O-ring seal, install heater tube (1). Tighten the bolt (2) to the proper specification. Refer TORQUE SPECIFICATIONS GAS to .
- Install the supercharger belt. Refer to BELT, DRIVE, INSTALLATION .
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION, 6.2L .
- Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
- Install the front skid plate. Refer to PLATE, SKID, TRANSFER CASE, REMOVAL .
- Connect the negative battery cable.
- Evacuate air and refill the cooling system. Refer to STANDARD PROCEDURE .
- Check the cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
