Module, Body Control (BCM): Installation

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, Occupant Classification System (OCS), seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to follow these instructions may result in accidental airbag deployment.

Courtesy of CHRYSLER GROUP, LLC

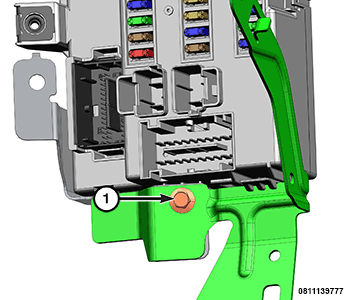

Install and tighten the fastener (1) that secures the BCM to the mounting brackets. Tighten the screw to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

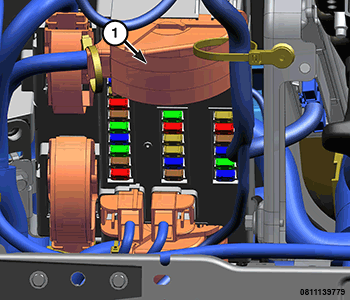

Position the BCM with mounting brackets to the instrument panel support structure outboard of the steering column as a unit and connect the wire harness connectors (1) to the back of the BCM.

Courtesy of CHRYSLER GROUP, LLC

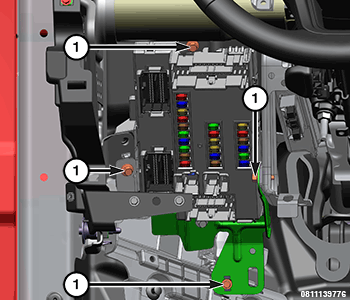

Install and tighten the fasteners (1) that secure the BCM and BCM mounting bracket to the instrument panel support structure. Tighten the screws to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

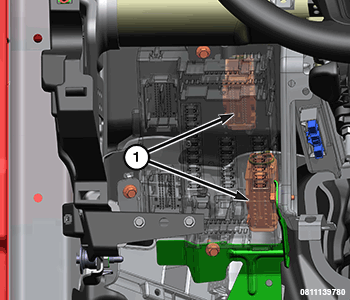

Connect all of the wire harness connectors (1) to the BCM.
Install the left lower A-Pillar extension/sill plate trim.
Install the steering column opening cover to the instrument panel. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
Using the scan tool, perform the "IBS calibration" routine. If this is not completed, the Electronic STOP/START (ESS) function will not operate.
If this Electronic Control Unit (ECU) is being replaced with a new unit, programing of the BCM is required. Refer to MODULE, BODY CONTROL (BCM), MODULE PROGRAMMING .

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
