Module, Emergency Assistance (EAM): Installation: Module

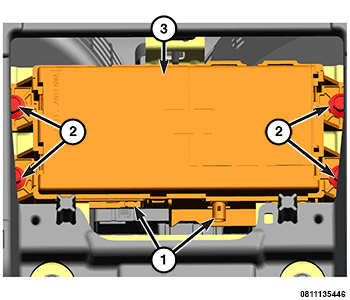

- Position the Emergency Assistance Module (EAM) (3) to the instrument panel bracket.
- Install the fasteners (2) for the EAM and tighten the fasteners securely.
- Connect the instrument panel wire harness connectors and antenna connectors (1).
- Install the radio. Refer to RADIO, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
