Module, Integrated Center Stack (ICSM): Installation

Courtesy of CHRYSLER GROUP, LLC

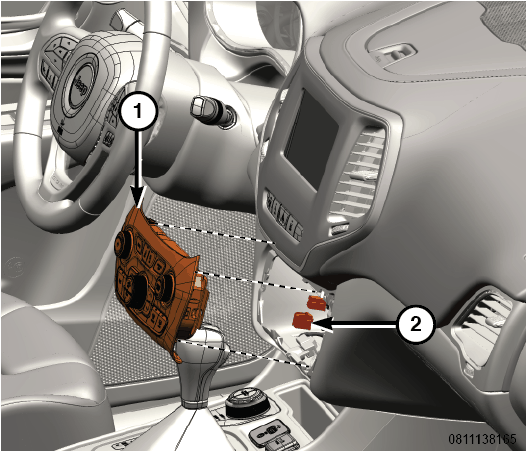

Position the Integrated Center Stack (ICS) module (1) to the instrument panel and connect the wire harness connectors (2).
Position the ICS module to the instrument panel and engage the retaining tabs. Make sure the retaining tabs are fully engaged into the instrument panel.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
Initiate the Actuator Calibration function using a scan tool. Refer to HVAC VERIFICATION TEST .

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
