Module, Memory, Seat (MSM): Description

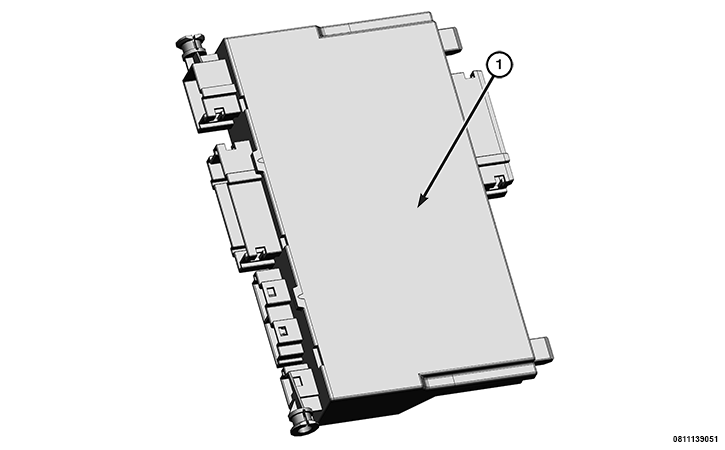

When equipped, The Memory Seat (MSM) module (1) is attached to a module bracket located on the bottom side of the driver seat. The MSM is attached to a bracket by slide and snap fit. The MSM is used in conjunction with the other modules in the memory system to recall the driver seat to two different driver preset seat position preferences. The MSM is able to store and recall all driver side power seat positions (fore/aft, up/down, tilt and recline), outside mirror position, power steering column position and up to twelve radio station presets on vehicles with a factory installed radio connected to the Controller Area Network (CAN) data bus network. The memory system will also store and recall the last radio station listened to for each driver, even if it is not one of the twelve preset stations.
The MSM will automatically recall the settings when a button of the memory switch located in the driver door trim panel is pressed, or when the doors are unlocked using the Remote Keyless Entry (RKE) transmitter if the "RKE Linked to Memory" feature is enabled. If the vehicle has more than two drivers the RKE transmitter recall of memory features can be disabled. This is a customer programmable feature.
