Module-Inverter 220VAC (Standard) Connector End View (D2831A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1456471-2

Part Description: Not Available

Connector No: D2831A

Option: Standard

Repair Kit Part Number: 68496346AA

Cavity Count: 8

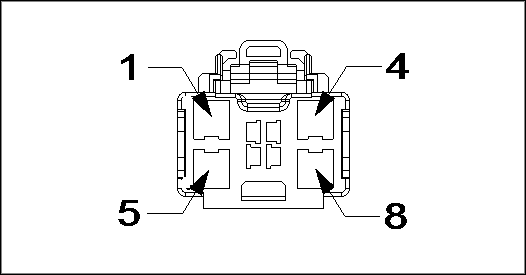

Fig 1: Module-Inverter 220vac Connector End View (Standard)

Courtesy of CHRYSLER

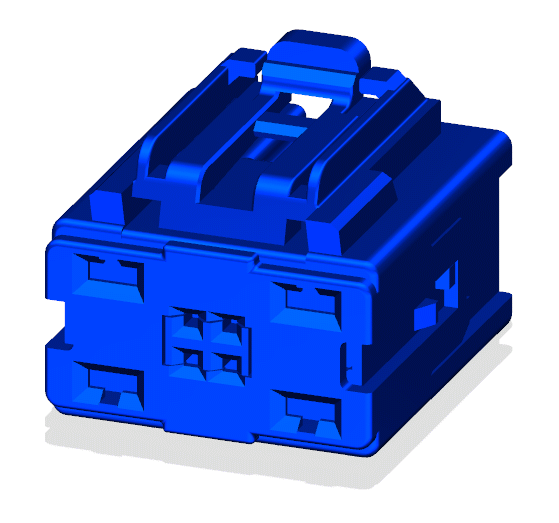

Fig 2: Module-Inverter 220vac Isometric View (Standard)

Courtesy of CHRYSLER

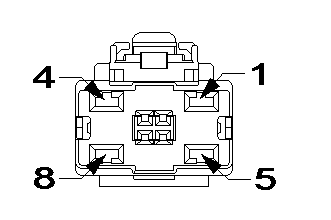

Fig 3: Module-Inverter 220vac Wire Insertion View (Standard)

Courtesy of CHRYSLER

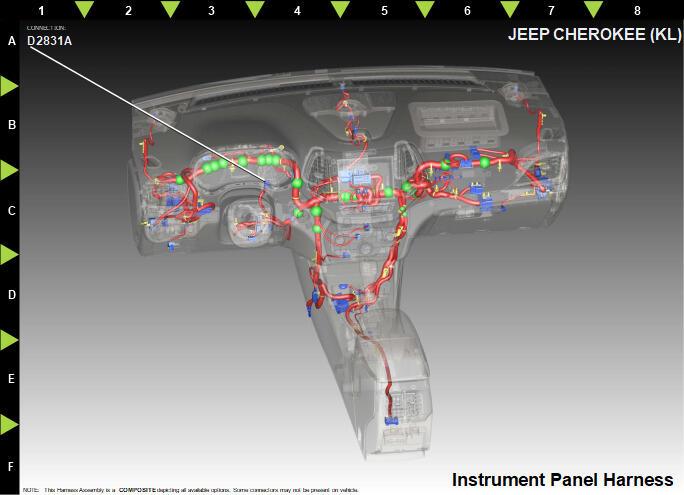

Fig 4: Module-Inverter 220vac Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P828	GN/OG	1.0	220 VOLT AC LINE 2	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	A401	RD/GN	2.0	FUSED B(+)	N/A
5	P824	GN	1.0	220 VOLT AC LINE 1	N/A
6	P825	GN/BU	0.50	220 VOLT AC LINE 3	N/A
7	N0	NA	0	NO CONNECT	N/A
8	Z914	BK	2.0	GROUND	N/A
