Module-Occupant Restraint Controller C1 (Standard) Connector End View (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 2098963-1_2098974-1_2098973-1

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: 68305266AA

Cavity Count: 30

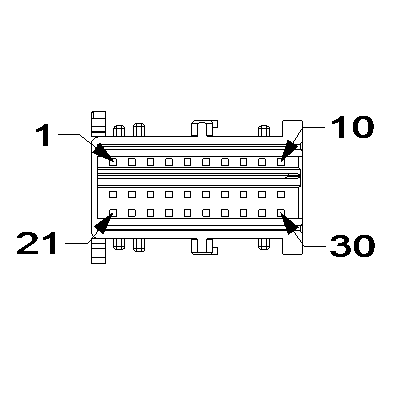

Fig 1: Module-Occupant Restraint Controller C1 Connector End View (Standard)

Courtesy of CHRYSLER

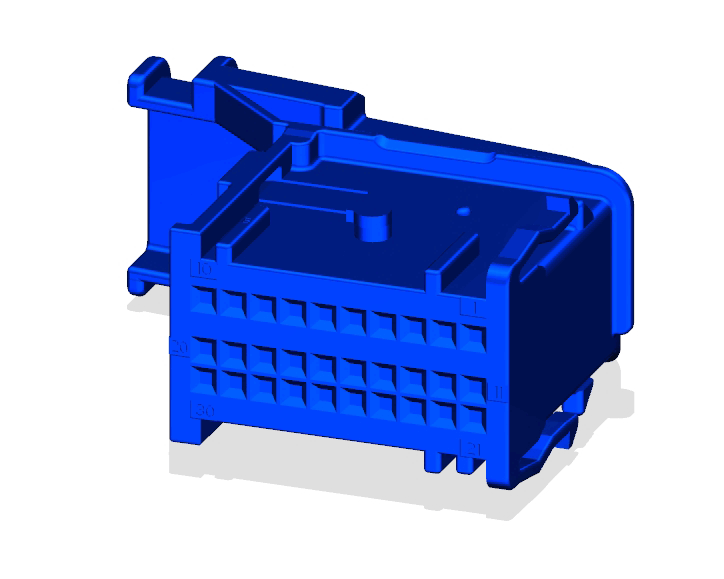

Fig 2: Module-Occupant Restraint Controller C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Occupant Restraint Controller C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

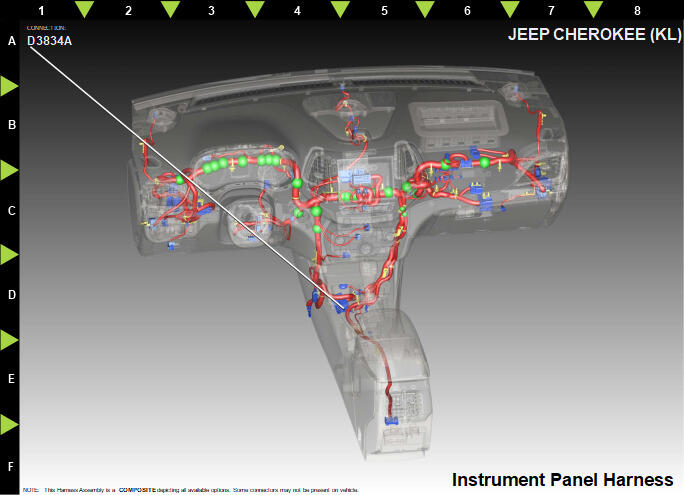

Fig 4: Module-Occupant Restraint Controller C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	BUX
2	R12	DB/BU	0.50	PASSENGER KNEE BLOCKER SQUIB LINE 1	NAFTA
3	R9	BU/YE	0.50	DRIVER KNEE BLOCKER SQUIB LINE 2	N/A
4	R44	GY/OG	0.50	PASSENGER SQUIB 1 LINE 1	N/A
5	R43	BU/BN	0.50	DRIVER SQUIB 1 LINE 2	N/A
6	R64	VT/WH	0.50	PASSENGER SQUIB 2 LINE 1	N/A
7	R61	GN/VT	0.50	DRIVER SQUIB 2 LINE 2	N/A
8	N0	NA	0	NO CONNECT	BUX
8	R68	BU/YE	0.50	PASSENGER SQUIB 3 LINE 1	NAFTA
9	R67	GY/OG	0.50	DRIVER SQUIB 3 LINE 2	N/A
10	F945	PK/GN	0.50	IGNITION RUN/START CONTROL OUTPUT	N/A
11	D11	YE/DB	0.35	CAN C (+)	N/A
12	N0	NA	0	NO CONNECT	N/A
13	R80	VT/BU	0.50	RIGHT FRONT IMPACT SENSOR SIGNAL	N/A
14	R82	WH/BU	0.50	RIGHT FRONT IMPACT SENSOR GROUND	N/A
15	N0	NA	0	NO CONNECT	BUX
15	R41	BU/OG	0.50	AIRBAG DEPLOYMENT SIGNAL	NAFTA AND RUSSIA
16	R81	BU/WH	0.50	LEFT FRONT IMPACT SENSOR GROUND	N/A
17	R79	BU/VT	0.50	LEFT FRONT IMPACT SENSOR SIGNAL	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	F929	PK/YE	0.35	FUSED IGNITION SWITCH OUTPUT (RUN)	N/A
21	D12	YE	0.35	CAN C (-)	N/A
22	N0	NA	0	NO CONNECT	BUX
22	R10	YE/BU	0.50	PASSENGER KNEE BLOCKER SQUIB LINE 2	NAFTA
23	R11	OG/DB	0.50	DRIVER KNEE BLOCKER SQUIB LINE 1	N/A
24	R42	DG/BN	0.50	PASSENGER SQUIB 1 LINE 2	N/A
25	R45	GN/OG	0.50	DRIVER SQUIB 1 LINE 1	N/A
26	R62	BU/VT	0.50	PASSENGER SQUIB 2 LINE 2	N/A
27	R63	DB/WH	0.50	DRIVER SQUIB 2 LINE 1	N/A
28	N0	NA	0	NO CONNECT	BUX
28	R66	GY/DG	0.50	PASSENGER SQUIB 3 LINE 2	NAFTA
29	R69	GN/YE	0.50	DRIVER SQUIB 3 LINE 1	N/A
30	Z913	BK	0.75	GROUND	N/A
