Module-Occupant Restraint Controller C2 (Standard) Connector End View (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 2098966-1_2098972-1_2098971-1

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: 68602021AA

Cavity Count: 54

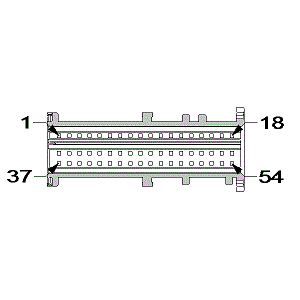

Fig 1: Module-Occupant Restraint Controller C2 Connector End View (Standard)

Courtesy of CHRYSLER

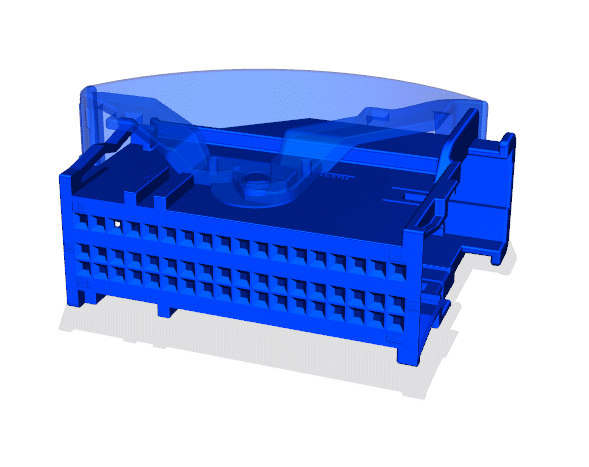

Fig 2: Module-Occupant Restraint Controller C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Occupant Restraint Controller C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

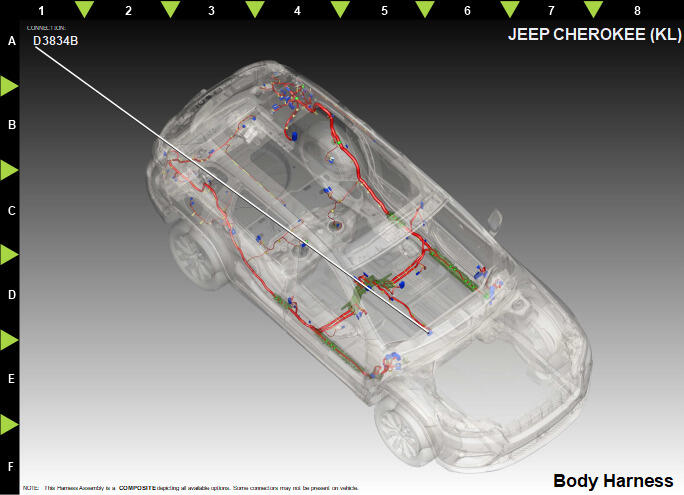

Fig 4: Module-Occupant Restraint Controller C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	BUX
5	R78	BG/BU	0.50	PASSENGER LOAD LIMITER LINE 1	NAFTA
6	R75	BU/VT	0.50	DRIVER LOAD LIMITER LINE 2	N/A
7	R37	GN/GY	0.50	2R SEAT BELT RETRACTOR PRET (-) LT	BUX
7	N0	NA	0	NO CONNECT	NAFTA
8	R36	GN/BN	0.50	2R SEAT BELT RETRACTOR PRET (+) RT	BUX
8	N0	NA	0	NO CONNECT	NAFTA
9	R8	GY/GN	0.50	RIGHT SEAT THORAX SQUIB 1 LINE 1	N/A
10	R5	BU/VT	0.50	LEFT SEAT THORAX SQUIB 1 LINE 2	N/A
11	R280	OG/VT	0.50	PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1	N/A
12	R277	DB/GN	0.50	DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2	N/A
13	R510	OG/BG	0.50	PASSENGER SEAT BELT ANCHOR TENSIONER LINE 1	N/A
14	R507	DG/BU	0.50	DRIVER SEAT BELT ANCHOR TENSIONER LINE 2	N/A
15	R4	GY/BU	0.75	RIGHT CURTAIN SQUIB 1 LINE 1	N/A
16	R1	GY/WH	0.75	LEFT CURTAIN SQUIB 1 LINE 2	N/A
17	R20	WH/GN	0.50	RIGHT SIDE IMPACT SENSOR 2 GROUND	N/A
18	R18	BU	0.50	RIGHT SIDE IMPACT SENSOR 2 SIGNAL	N/A
19	R730	BU/BK	0.50	PASSENGER SEAT DETECTION RETURN	N/A
20	R71	BU/VT	0.35	LEFT REAR SEAT BELT BUCKLE SWITCH SENSE	BUX
20	N0	NA	0	NO CONNECT	NAFTA
21	R72	VT/BU	0.35	RIGHT REAR SEAT BELT BUCKLE SWITCH SENSE	BUX
21	N0	NA	0	NO CONNECT	NAFTA
22	R27	BU/OG	0.35	2ND ROW SEAT BELT SWITCH SENSE	BUX
22	N0	NA	0	NO CONNECT	NAFTA
23	R58	BU/GY	0.50	PASSENGER SEAT BELT SWITCH SENSE	N/A
24	R57	GN/GY	0.50	DRIVER SEAT BELT BUCKLE SWITCH SENSE	N/A
25	R13	GN/BG	0.50	LEFT SIDE IMPACT SENSOR 1 SIGNAL	N/A
26	R15	GN/BN	0.50	LEFT SIDE IMPACT SENSOR 1 GROUND	N/A
27	R283	BU/DG	0.50	PASSENGER SEAT OCCUPANT DETECTION SIGNAL	N/A
28	R16	BN/GN	0.50	RIGHT SIDE IMPACT SENSOR 1 GROUND	N/A
29	R14	BG/GN	0.50	RIGHT SIDE IMPACT SENSOR 1 SIGNAL	N/A
30	R263	BU/VT	0.50	DRIVER SEAT POSITION SENSOR VOLTAGE	N/A
31	R130	DB	0.50	LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL	N/A
32	R150	GN/DB	0.50	LEFT SIDE IMPACT PRESSURE SENSOR GROUND	N/A
33	R264	VT/BU	0.50	PASSENGER SEAT POSITION SENSOR VOLTAGE	N/A
34	R160	BN	0.50	RIGHT SIDE IMPACT PRESSURE SENSOR GROUND	N/A
35	R140	BG	0.50	RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL	N/A
36	R729	GN/BK	0.50	DRIVER SEAT DETECTION RETURN	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
40	N0	NA	0	NO CONNECT	N/A
41	N0	NA	0	NO CONNECT	BUX
41	R76	VT/BU	0.50	PASSENGER LOAD LIMITER LINE 2	NAFTA
42	R77	VT/BG	0.50	DRIVER LOAD LIMITER LINE 1	N/A
43	R35	BU/GN	0.50	2R SEAT BELT RETRACTOR PRET (+) LT	BUX
43	N0	NA	0	NO CONNECT	NAFTA
44	R38	BU/GY	0.50	2R SEAT BELT RETRACTOR PRET (-) RT	BUX
44	N0	NA	0	NO CONNECT	NAFTA
45	R6	VT/BU	0.50	RIGHT SEAT THORAX SQUIB 1 LINE 2	N/A
46	R7	GN/GY	0.50	LEFT SEAT THORAX SQUIB 1 LINE 1	N/A
47	R279	DB/OG	0.50	PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2	N/A
48	R278	OG/DG	0.50	DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1	N/A
49	R509	DG/OG	0.50	PASSENGER SEAT BELT ANCHOR TENSIONER LINE 2	N/A
50	R508	GY/DB	0.50	DRIVER SEAT BELT ANCHOR TENSIONER LINE 1	N/A
51	R2	DB/VT	0.75	RIGHT CURTAIN SQUIB 1 LINE 2	N/A
52	R3	DG/OG	0.75	LEFT CURTAIN SQUIB 1 LINE 1	N/A
53	R17	GN	0.50	LEFT SIDE IMPACT SENSOR 2 SIGNAL	N/A
54	R19	GN/WH	0.50	LEFT SIDE IMPACT SENSOR 2 GROUND	N/A
