Module-Memory Seat-Driver C1 (Standard) Connector End View (D3873A)

Harness-Family: Seat_Cshn_Driver

Color: BLACK

Gender: FEMALE

Part Number: 772-715-541

Part Description: Not Available

Connector No: D3873A

Option: Standard

Repair Kit Part Number: 68440506AA

Cavity Count: 14

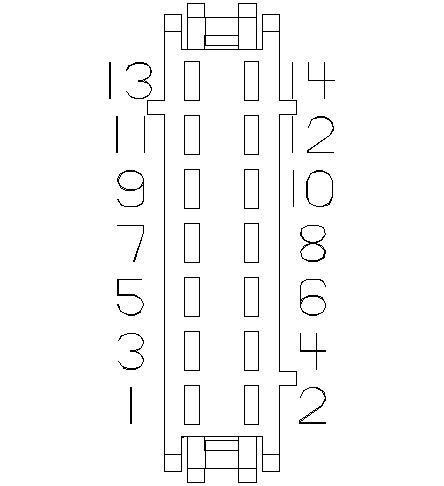

Fig 1: Module-Memory Seat-Driver C1 Connector End View (Standard)

Courtesy of CHRYSLER

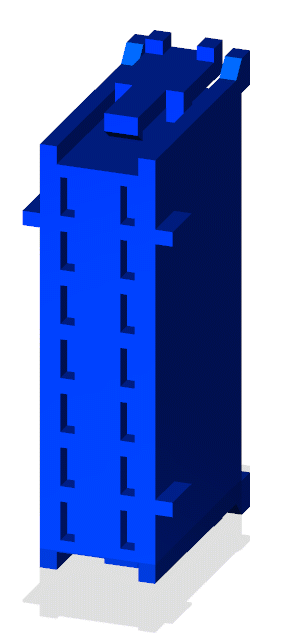

Fig 2: Module-Memory Seat-Driver C1 Isometric View (Standard)

Courtesy of CHRYSLER

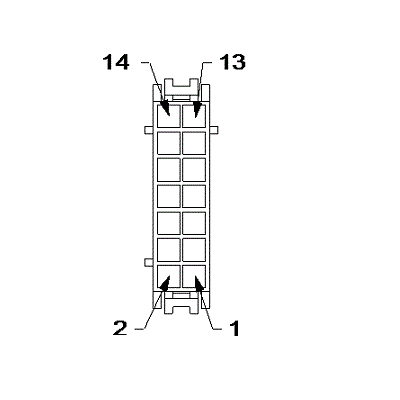

Fig 3: Module-Memory Seat-Driver C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

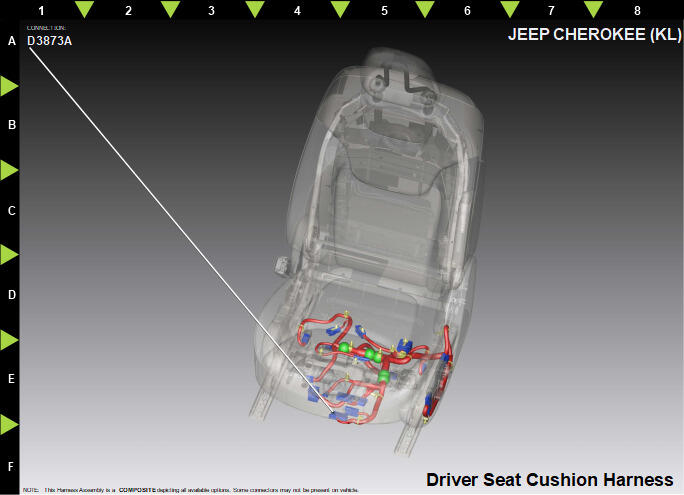

Fig 4: Module-Memory Seat-Driver C1 Component Location View (Standard)

Courtesy of CHRYSLER
