Module-Memory Seat-Driver C4 (Standard) Connector End View (D3873D)

Harness-Family: Seat_Cshn_Driver

Color: BLACK

Gender: FEMALE

Part Number: 772-716-541

Part Description: Not Available

Connector No: D3873D

Option: Standard

Repair Kit Part Number: 68440508AA

Cavity Count: 6

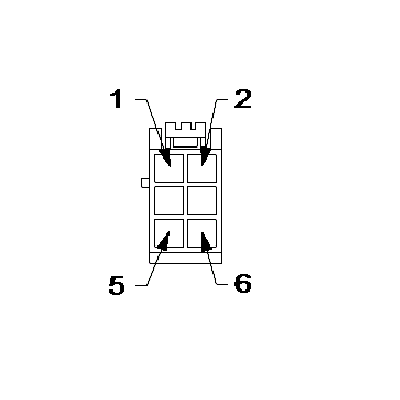

Fig 1: Module-Memory Seat-Driver C4 Connector End View (Standard)

Courtesy of CHRYSLER

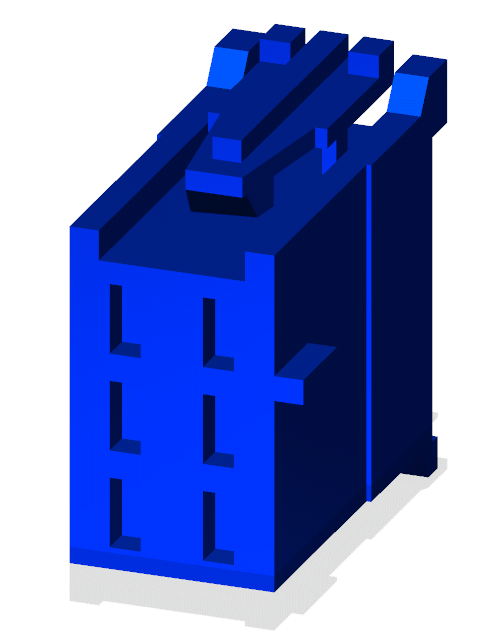

Fig 2: Module-Memory Seat-Driver C4 Isometric View (Standard)

Courtesy of CHRYSLER

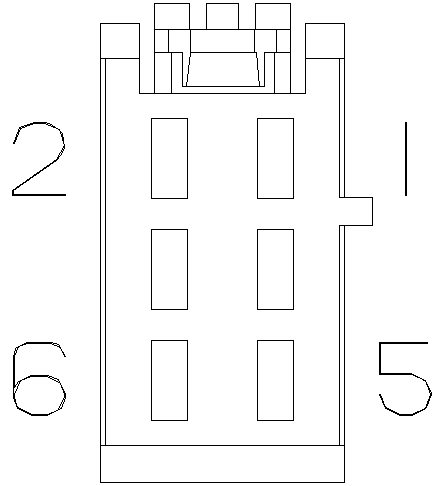

Fig 3: Module-Memory Seat-Driver C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

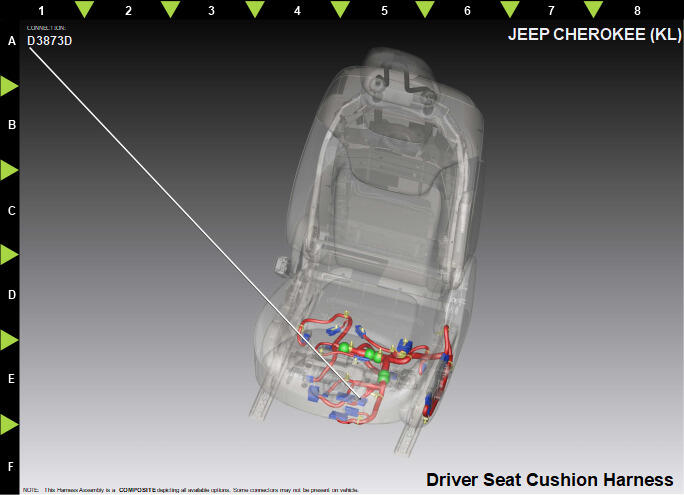

Fig 4: Module-Memory Seat-Driver C4 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G493	OG/VT	0.35	POSITION SENSOR GROUND	N/A
2	P141	GN/BN	0.50	DRIVER SEAT RECLINER UP DRIVER	N/A
3	N0	NA	0	NO CONNECT	N/A
4	P143	GN/GY	0.50	DRIVER SEAT RECLINER DOWN DRIVER	N/A
5	G403	VT/OG	0.35	DRIVER SEAT RECLINER POSITION SENSE	N/A
6	N0	NA	0	NO CONNECT	N/A
