Module-Memory Seat-Driver C5 (Standard) Connector End View (D3873E)

Harness-Family: Seat_Cshn_Driver

Color: NATURAL

Gender: FEMALE

Part Number: 772-715-542

Part Description: Not Available

Connector No: D3873E

Option: Standard

Repair Kit Part Number: 68440507AA

Cavity Count: 14

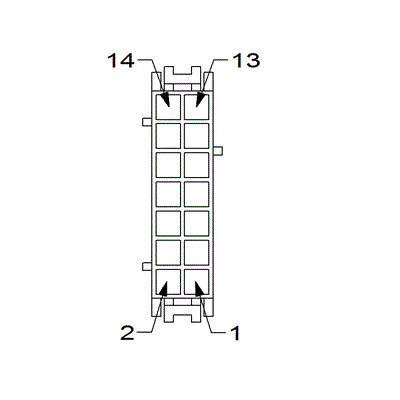

Fig 1: Module-Memory Seat-Driver C5 Connector End View (Standard)

Courtesy of CHRYSLER

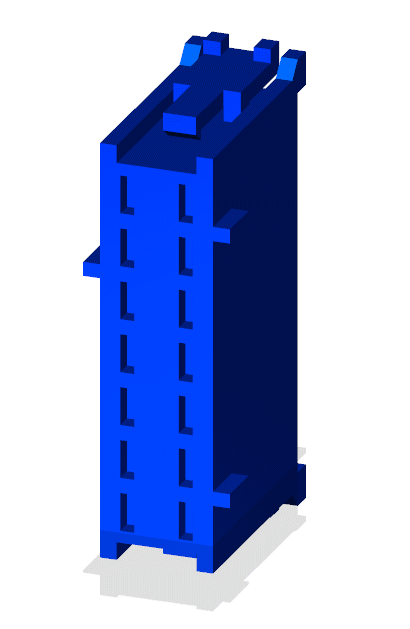

Fig 2: Module-Memory Seat-Driver C5 Isometric View (Standard)

Courtesy of CHRYSLER

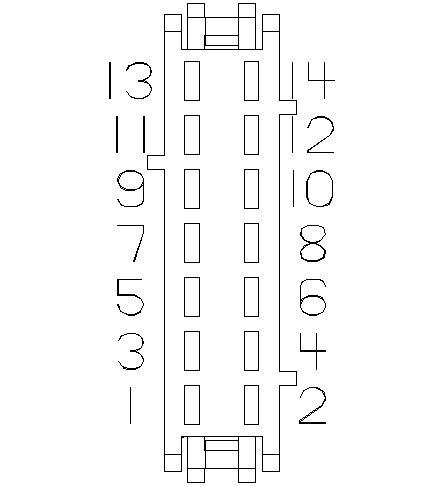

Fig 3: Module-Memory Seat-Driver C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

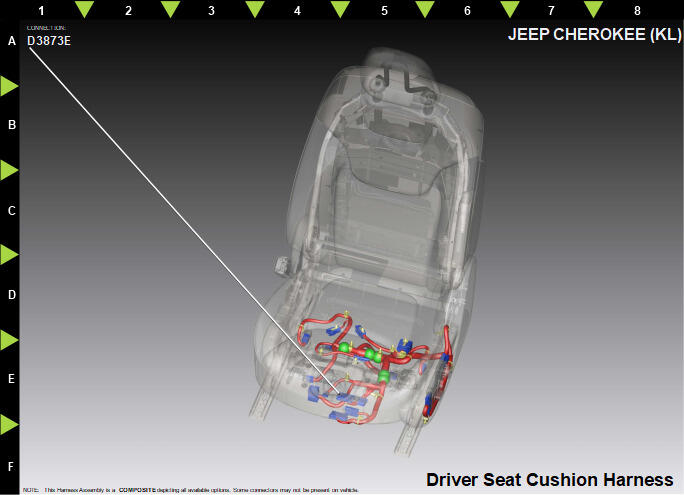

Fig 4: Module-Memory Seat-Driver C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G404	VT/YE	0.35	DRIVER SEAT FRONT VERTICAL POSITION SENSE	N/A
2	G402	VT/DB	0.35	DRIVER SEAT REAR VERTICAL POSITION SENSE	N/A
3	G401	VT/GN	0.35	DRIVER SEAT HORIZONTAL POSITION SENSE	N/A
4	G494	YE/VT	0.35	DRIVER SEAT FRONT VERTICAL SENSOR GROUND	N/A
5	G492	BU/VT	0.35	DRIVER SEAT REAR VERTICAL SENSOR GROUND	N/A
6	G491	VT/GY	0.35	DRIVER SEAT HORIZONTAL SENSOR GROUND	N/A
7	N0	NA	0	NO CONNECT	N/A
8	P115	GN	0.75	DRIVER SEAT HORIZONTAL FORWARD DRIVER	N/A
9	P117	GN/BU	0.75	DRIVER SEAT HORIZONTAL REARWARD DRIVER	N/A
10	P113	GN/WH	0.75	DRIVER SEAT REAR VERTICAL DOWN DRIVER	N/A
11	N0	NA	0	NO CONNECT	N/A
12	P111	GN/YE	0.75	DRIVER SEAT REAR VERTICAL UP DRIVER	N/A
13	P121	GN/DB	0.75	DRIVER SEAT FRONT VERTICAL DOWN DRIVER	N/A
14	P119	GN/DG	0.75	DRIVER SEAT FRONT VERTICAL UP DRIVER	N/A
