Module-Memory Seat-Driver C7 (Standard) Connector End View (D3873G)

Harness-Family: Seat_Cshn_Driver

Color: BLUE

Gender: FEMALE

Part Number: 3-969508-2

Part Description: Not Available

Connector No: D3873G

Option: Standard

Repair Kit Part Number: 68440502AA

Cavity Count: 6

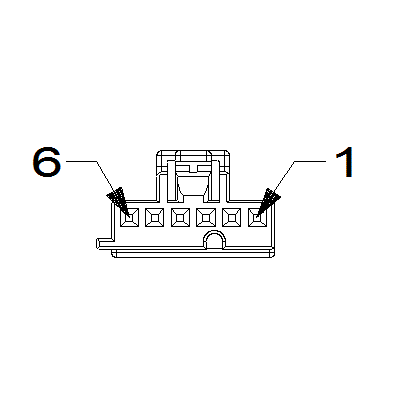

Fig 1: Module-Memory Seat-Driver C7 Connector End View (Standard)

Courtesy of CHRYSLER

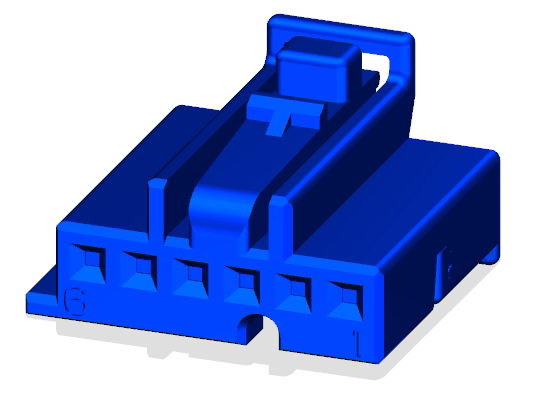

Fig 2: Module-Memory Seat-Driver C7 Isometric View (Standard)

Courtesy of CHRYSLER

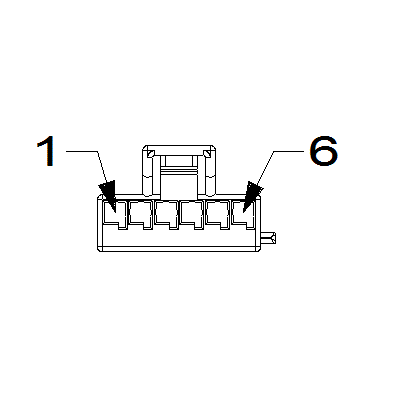

Fig 3: Module-Memory Seat-Driver C7 Wire Insertion View (Standard)

Courtesy of CHRYSLER

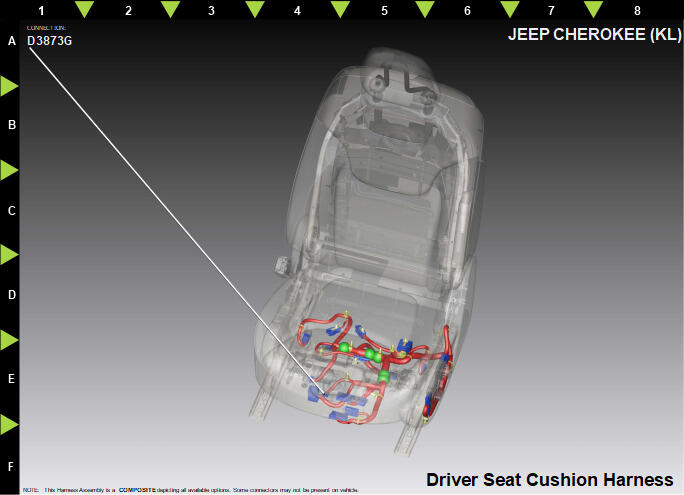

Fig 4: Module-Memory Seat-Driver C7 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P599	GN/BG	0.35	DRIVER SEAT SWITCH MUX RETURN	N/A
2	P239	GN/WH	0.35	DRIVER SEAT SWITCH REAR VERTICAL/HORIZONTAL SWITCH MUX	N/A
3	P339	GN/DB	0.35	DRIVER SEAT SWITCH FRONT VERTICAL/RECLINER SWITCH MUX	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	P9	GN/OG	0.35	5 VOLT SUPPLY	N/A
