Module-Power-Blower Motor-Front C2 (Standard) Connector End View (D3881B)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 1-1418506-5

Part Description: Not Available

Connector No: D3881B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Module-Power-Blower Motor-Front C2 Connector End View (Standard)
GCWD1086409Courtesy of CHRYSLER

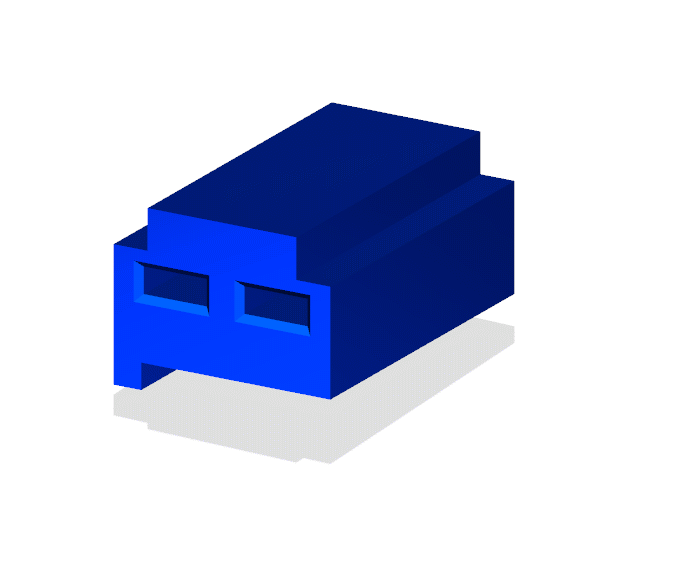

Fig 2: Module-Power-Blower Motor-Front C2 Isometric View (Standard)
GCWD1080466Courtesy of CHRYSLER
Fig 3: Module-Power-Blower Motor-Front C2 Wire Insertion View (Standard)
GCWD1204276Courtesy of CHRYSLER

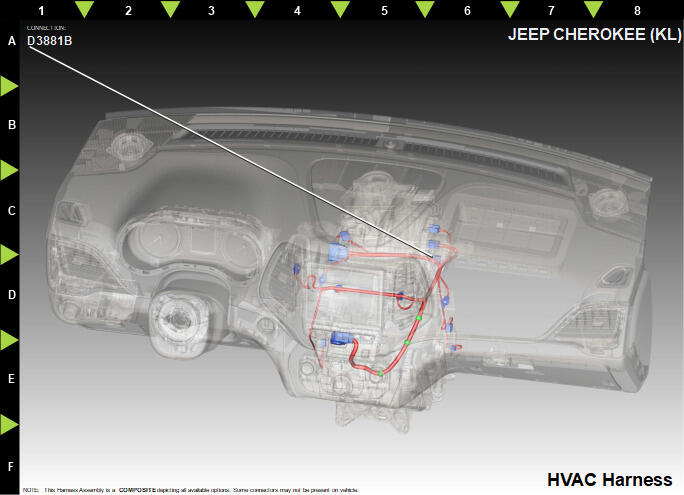

Fig 4: Module-Power-Blower Motor-Front C2 Component Location View (Standard)
GCWD1322069Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C6 RD 3.0 BLOWER MOTOR POWER RETURN N/A
2 C7 BN 3.0 BLOWER MOTOR SUPPLY N/A
