Module-Radiator Fan (Standard) Connector End View (D3842A)

Harness-Family: RAD_FAN_JMPR

Color: BLACK

Gender: FEMALE

Part Number: 7287-1403-30

Part Description: Not Available

Connector No: D3842A

Option: Standard

Repair Kit Part Number: 68442644AA

Cavity Count: 4

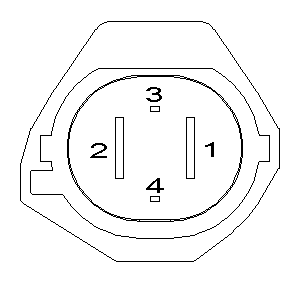

Fig 1: Module-Radiator Fan Connector End View (Standard)

Courtesy of CHRYSLER

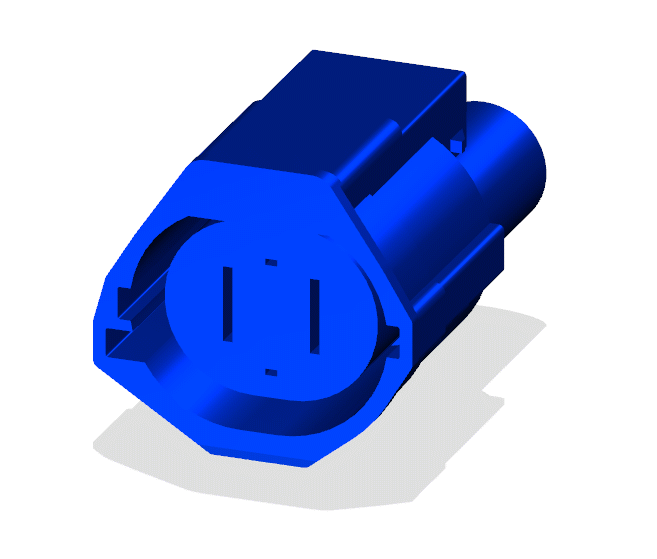

Fig 2: Module-Radiator Fan Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Radiator Fan Wire Insertion View (Standard)

Courtesy of CHRYSLER

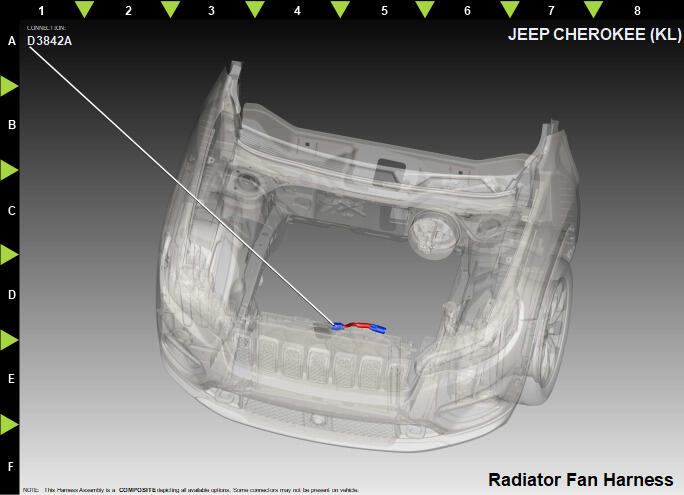

Fig 4: Module-Radiator Fan Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A958	RD	16.0	FUSED B(+)	N/A
2	Z903	BK	16.0	GROUND	N/A
3	N29	DB/BU	0.75	RADIATOR FAN ENABLE SIGNAL	N/A
4	K173	BN/VT	0.75	RADIATOR FAN CONTROL SIGNAL	N/A
