Module-Security Gateway C1 (Standard) Connector End View (D3921A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 7283-9052-30

Part Description: YESC KAIZEN SUB- ASSEMBLY

Connector No: D3921A

Option: Standard

Repair Kit Part Number: 68080557AA

Cavity Count: 12

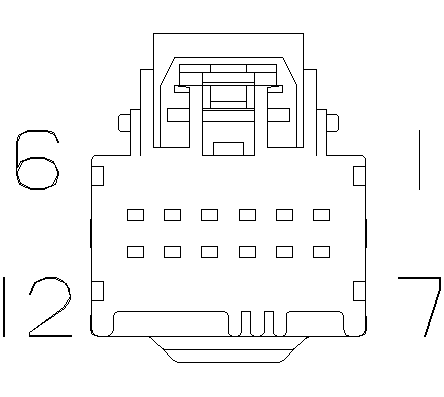

Fig 1: Module-Security Gateway C1 Connector End View (Standard)

Courtesy of CHRYSLER

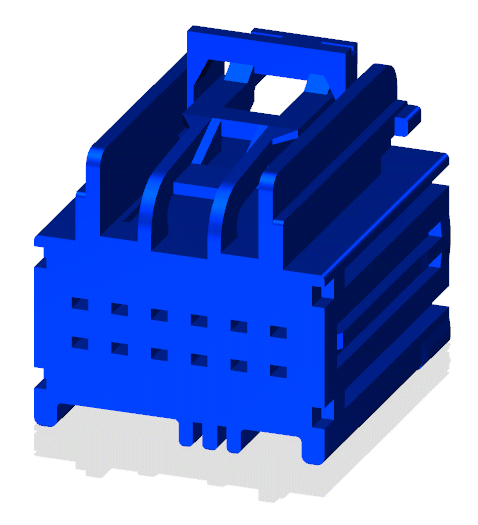

Fig 2: Module-Security Gateway C1 Isometric View (Standard)

Courtesy of CHRYSLER

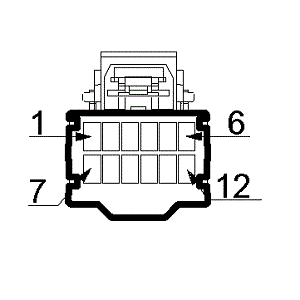

Fig 3: Module-Security Gateway C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

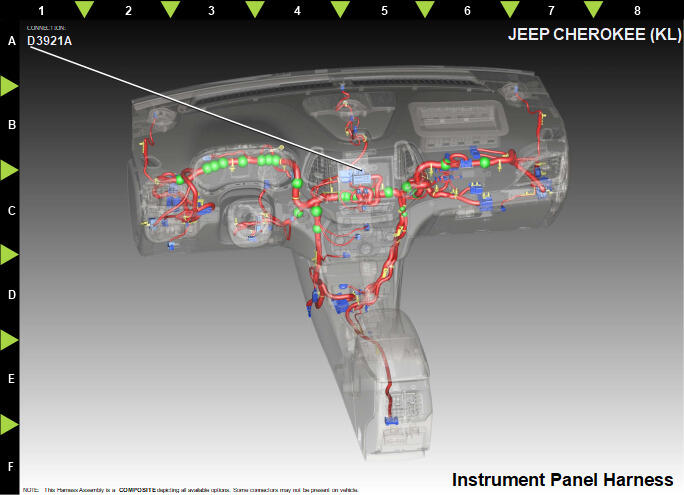

Fig 4: Module-Security Gateway C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	D428	BG	0.35	DIAGNOSTIC CAN C (+)	N/A
4	D436	GY	0.35	CAN C (+) AT	N/A
5	D351	WH/BN	0.35	CAN C (+)	N/A
6	Z912	BK	0.75	GROUND	N/A
7	F949	PK/GN	0.75	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	D427	YE	0.35	DIAGNOSTIC CAN C (-)	N/A
11	D435	YE/VT	0.35	CAN C (-) AT	N/A
12	D350	YE/GN	0.35	CAN C (-)	N/A
