Module-Steering Column Control C2 (Standard) Connector End View (D3816B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1452015-2

Part Description: Not Available

Connector No: D3816B

Option: Standard

Repair Kit Part Number: 68496361AA

Cavity Count: 12

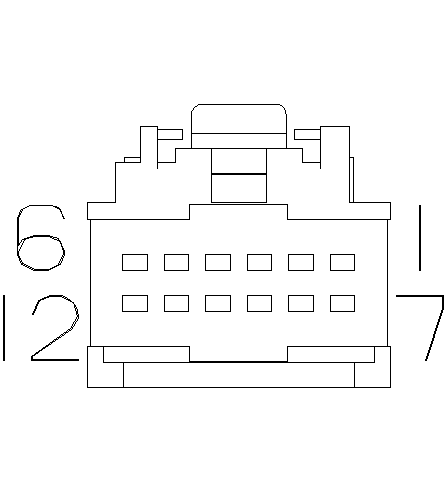

Fig 1: Module-Steering Column Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

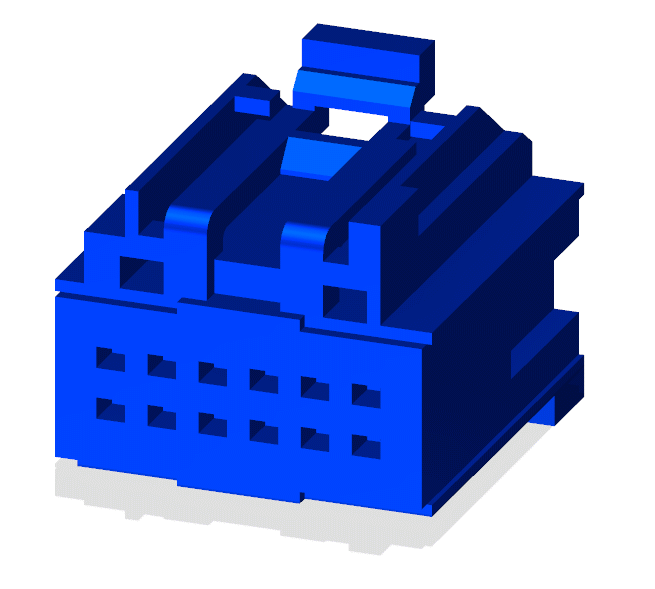

Fig 2: Module-Steering Column Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

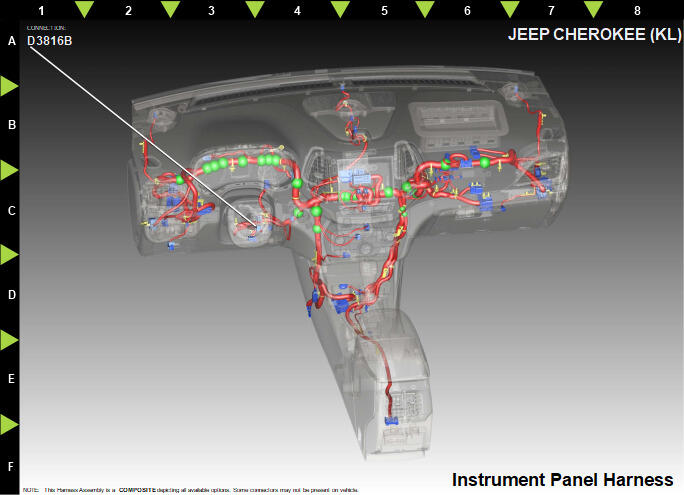

Fig 4: Module-Steering Column Control C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z917	BK	0.35	GROUND	N/A
2	D98	YE	0.35	CAN C (-)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	D97	DB/WH	0.35	CAN C (+)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	A937	RD	0.35	FUSED B(+)	N/A
7	D403	OG/DB	0.35	LIN BUS CBC 3	N/A
8	X3	DG/VT	0.50	HORN SWITCH SENSE	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
