Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: StrgWheelJumper

Color: BLACK

Gender: FEMALE

Part Number: 1318774-2

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: 68601778AA

Cavity Count: 12

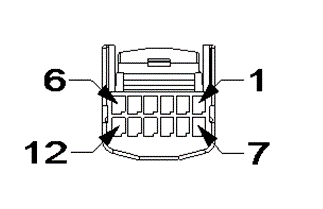

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)

Courtesy of CHRYSLER

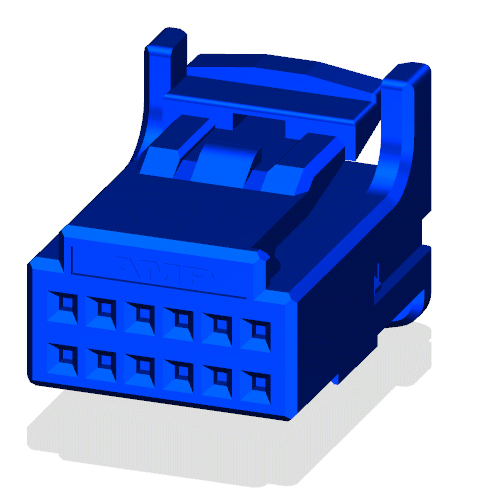

Fig 2: Module-Steering Column Control C3 Isometric View (Standard)

Courtesy of CHRYSLER

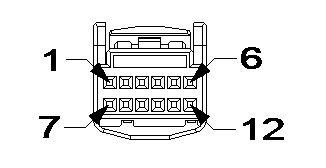

Fig 3: Module-Steering Column Control C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

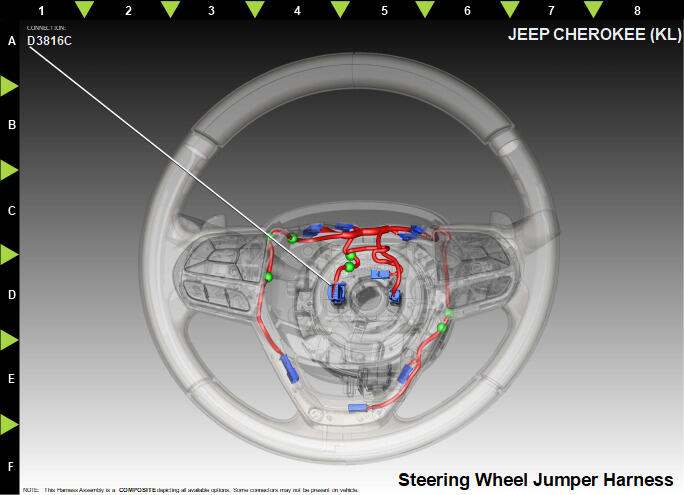

Fig 4: Module-Steering Column Control C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	NA	NO CONNECT	N/A
2	N0	NA	NA	NO CONNECT	N/A
3	N0	NA	NA	NO CONNECT	N/A
4	N0	NA	NA	NO CONNECT	N/A
5	N0	NA	NA	NO CONNECT	N/A
6	N0	NA	NA	NO CONNECT	N/A
7	A92	RD	0.22	FUSED B(+)	N/A
8	N0	NA	NA	NO CONNECT	BASE
8	T830	GN	0.22	PADDLE SHIFT SWITCH SIGNAL	UPGRADE
9	X3	BU	0.22	HORN SWITCH SENSE	N/A
10	D592	BK	0.22	LIN BUS	N/A
11	Z92	BU	0.22	GROUND	N/A
12	D594	BK	0.22	LIN BUS	N/A
