Module-Steering Column Control C4 (Standard) Connector End View (D3816D)

Harness-Family: StrgWheelJumper

Color: WHITE

Gender: FEMALE

Part Number: 174463-1

Part Description: .070 SRS MLC 2POS PLUG HOUSING

Connector No: D3816D

Option: Standard

Repair Kit Part Number: 68040489AA

Cavity Count: 2

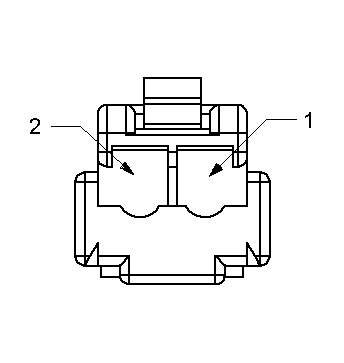

Fig 1: Module-Steering Column Control C4 Connector End View (Standard)

Courtesy of CHRYSLER

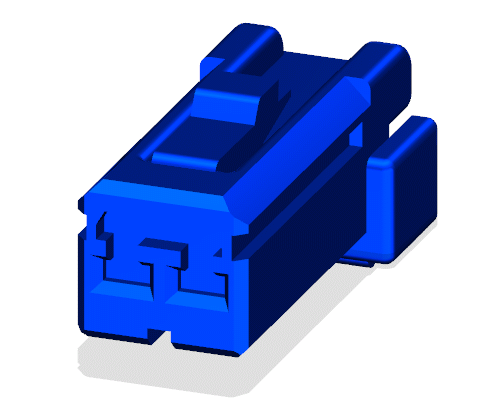

Fig 2: Module-Steering Column Control C4 Isometric View (Standard)

Courtesy of CHRYSLER

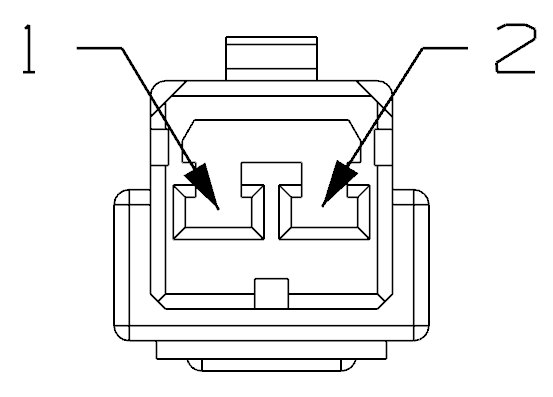

Fig 3: Module-Steering Column Control C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

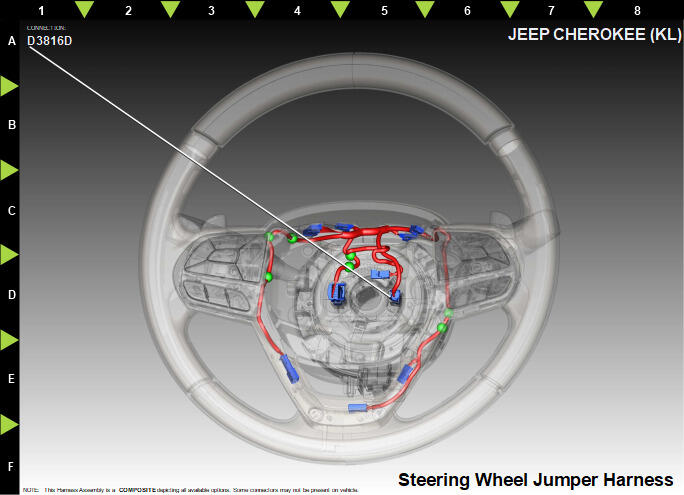

Fig 4: Module-Steering Column Control C4 Component Location View (Standard)

Courtesy of CHRYSLER
