Module-Transmission Control (3.2L) Connector End View (D3855A)

Harness-Family: ENGINE

Color: BLACK

Gender: FEMALE

Part Number: 22400172001-10234176-1_04_00_75899_1

Part Description: Not Available

Connector No: D3855A

Option: 3.2L

Repair Kit Part Number: 68335200AA

Cavity Count: 58

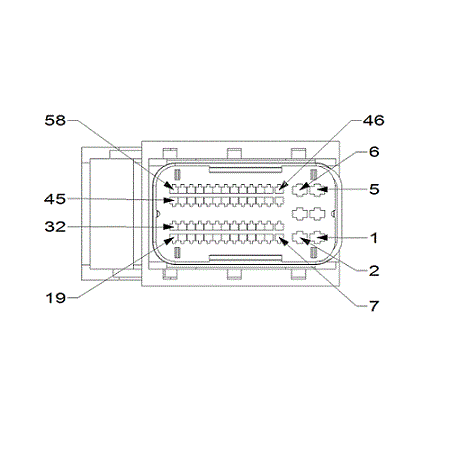

Fig 1: Module-Transmission Control Connector End View (3.2L)

Courtesy of CHRYSLER

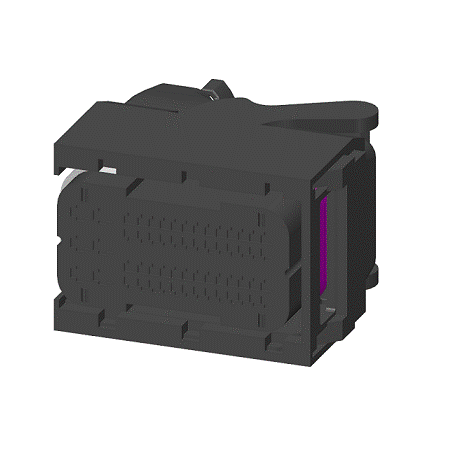

Fig 2: Module-Transmission Control Isometric View (3.2L)

Courtesy of CHRYSLER

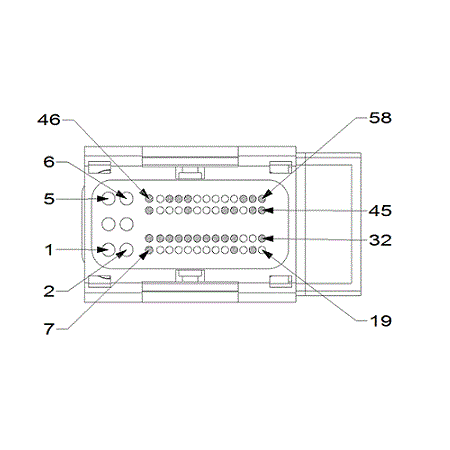

Fig 3: Module-Transmission Control Wire Insertion View (3.2L)

Courtesy of CHRYSLER

Fig 4: Module-Transmission Control Component Location View (3.2L)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z904	BK	1.0	GROUND	N/A
2	Z904	BK	1.0	GROUND	N/A
3	T78	YE	1.0	SOLENOID SUPPLY 1	N/A
4	N0	NA	0	NO CONNECT	N/A
5	A190	YE/RD	1.0	FUSED B(+)	N/A
6	T118	DG	0.50	SOLENOID SUPPLY 2	N/A
7	N0	NA	0	NO CONNECT	N/A
8	T917	YE/BG	0.50	SENSOR GROUND	N/A
9	F1	PK/WH	0.50	IGNITION OFF/RUN/START CONTROL OUTPUT	N/A
10	T376	YE/DB	0.50	5-VOLT SUPPLY	N/A
11	T41	YE/DB	0.75	TRS T41 SIGNAL	N/A
12	T54	DG/OG	0.50	TRANSMISSION TEMPERATURE SIGNAL	N/A
13	T3	DG/DB	0.75	TRS T3 SIGNAL	N/A
14	T42	DG/YE	0.75	TRS T42 SIGNAL	N/A
15	T1	DG/BU	0.75	TRS T1 SIGNAL	N/A
16	N0	NA	0	NO CONNECT	N/A
17	T69	YE/DG	0.50	9 VOLT SUPPLY	N/A
18	N0	NA	0	NO CONNECT	N/A
19	T377	YE/VT	0.50	OIL PRESSURE SIGNAL	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	N0	NA	0	NO CONNECT	N/A
25	N0	NA	0	NO CONNECT	N/A
26	N0	NA	0	NO CONNECT	N/A
27	N0	NA	0	NO CONNECT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	T820	YE/WH	0.50	SENSOR GROUND	N/A
31	T52	DG/OG	0.50	INPUT SPEED SIGNAL	N/A
32	N0	NA	0	NO CONNECT	N/A
33	N0	NA	0	NO CONNECT	N/A
34	D29	VT/WH	0.35	CAN C (+)	N/A
35	T803	DG/BN	0.50	LIMP HOME MODE SOLENOID	N/A
36	T802	DG/PK	0.50	DOG CLUTCH SOLENOID F	N/A
37	N0	NA	0	NO CONNECT	N/A
38	T801	DG/RD	0.50	DOG CLUTCH SOLENOID A	N/A
39	T792	YE/BK	0.50	PRESSURE CONTROL SOLENOID TORQUE CONVERTER	N/A
40	T818	YE/OG	0.50	PRESSURE CONTROL SOLENOID D	N/A
41	N0	NA	0	NO CONNECT	N/A
42	N0	NA	0	NO CONNECT	N/A
43	T14	DG/BN	0.50	OUTPUT SPEED SIGNAL	N/A
44	N0	NA	0	NO CONNECT	N/A
45	N0	NA	0	NO CONNECT	N/A
46	N0	NA	0	NO CONNECT	N/A
47	D30	YE	0.35	CAN C (-)	N/A
48	N0	NA	0	NO CONNECT	N/A
49	N0	NA	0	NO CONNECT	N/A
50	N0	NA	0	NO CONNECT	N/A
51	T800	DG/BN	0.50	HOLDING MAGNET PARK LOCK SOLENOID	N/A
52	T812	DG/BG	0.50	PRESSURE CONTROL SOLENOID LINE PRESSURE	N/A
53	T790	GY/BK	0.50	PRESSURE CONTROL SOLENOID E	N/A
54	T814	YE/BN	0.50	PRESSURE CONTROL SOLENOID B	N/A
55	T816	YE/PK	0.50	PRESSURE CONTROL SOLENOID C	N/A
56	N0	NA	0	NO CONNECT	N/A
57	N0	NA	0	NO CONNECT	N/A
58	N0	NA	0	NO CONNECT	N/A
