Pump-Rear Drive Module (Standard) Connector End View (D2329B)

Harness-Family: UNDERBODY

Color: BLACK

Gender: FEMALE

Part Number: 15326677

Part Description: Not Available

Connector No: D2329B

Option: Standard

Repair Kit Part Number: 68272948AA

Cavity Count: 2

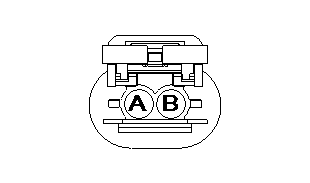

Fig 1: Pump-Rear Drive Module Connector End View (Standard)

Courtesy of CHRYSLER

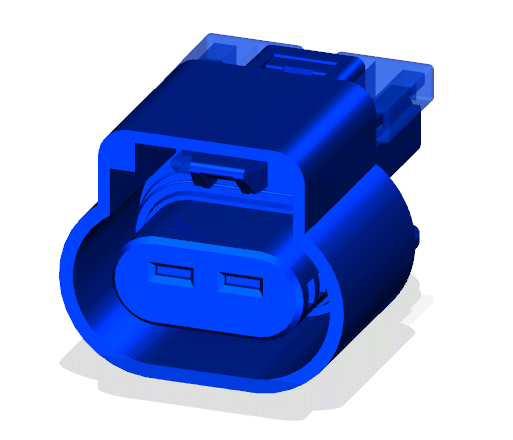

Fig 2: Pump-Rear Drive Module Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Pump-Rear Drive Module Wire Insertion View (Standard)

Courtesy of CHRYSLER

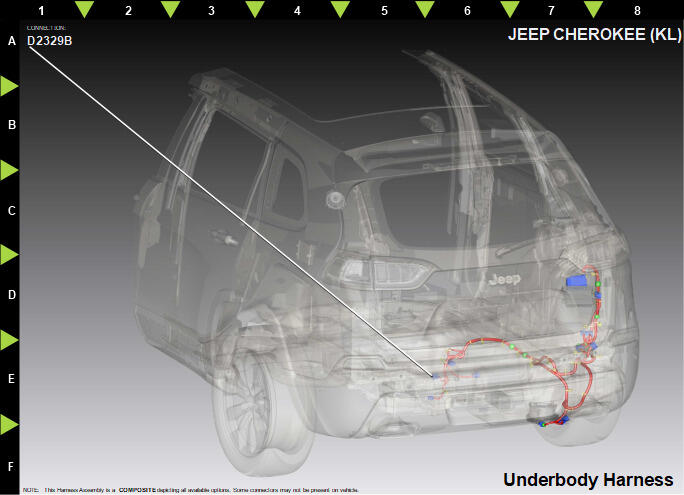

Fig 4: Pump-Rear Drive Module Component Location View (Standard)

Courtesy of CHRYSLER
