Transmitter-Intrusion Sensor (Standard) Connector End View (D6704A)

Harness-Family: HEADLINER

Color: BLACK

Gender: FEMALE

Part Number: 1241634-1

Part Description: Not Available

Connector No: D6704A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Transmitter-Intrusion Sensor Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Transmitter-Intrusion Sensor Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Transmitter-Intrusion Sensor Wire Insertion View (Standard)

Courtesy of CHRYSLER

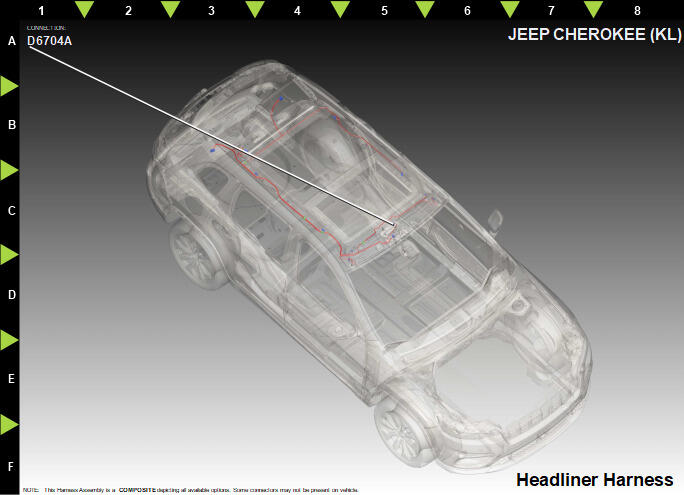

Fig 4: Transmitter-Intrusion Sensor Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A939	RD	0.50	FUSED B(+)	N/A
2	D401	OG	0.35	LIN BUS CBC 1	N/A
3	Z924	BK	0.50	GROUND	N/A
4	N0	NA	0	NO CONNECT	N/A
