Insulator, Engine Mount, Left: Installation

WARNING: This page is about a different variant/trim than selected.
GC0159904Courtesy of CHRYSLER GROUP, LLC

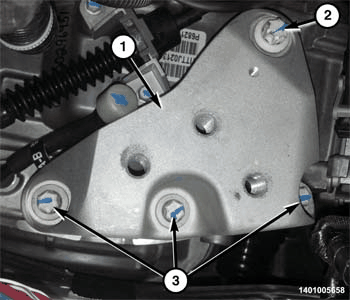

  1. If removed, install the left side upper transmission mount bracket (1) and tighten the bolts (2, 3) to the proper specifications.

    Refer to (TORQUE SPECIFICATIONS ).

    GC0159450Courtesy of CHRYSLER GROUP, LLC
  2. Position the left transmission mount onto the vehicle.
  3. Hand start all the bolts.
  4. Tighten the mount to frame rail bolts (2) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  5. Tighten the mount to shock tower bolt (4) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  6. Tighten the mount to transmission mount bracket bolts (1) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
    GC0159652Courtesy of CHRYSLER GROUP, LLC
  7. Install the PDC (1). Refer to CENTER, POWER DISTRIBUTION (PDC), INSTALLATION .
  8. Remove the floor jack.
  9. Raise the vehicle.
    GC0159327Courtesy of CHRYSLER GROUP, LLC
  10. Install the belly pan (1).
    GC0183773Courtesy of CHRYSLER GROUP, LLC

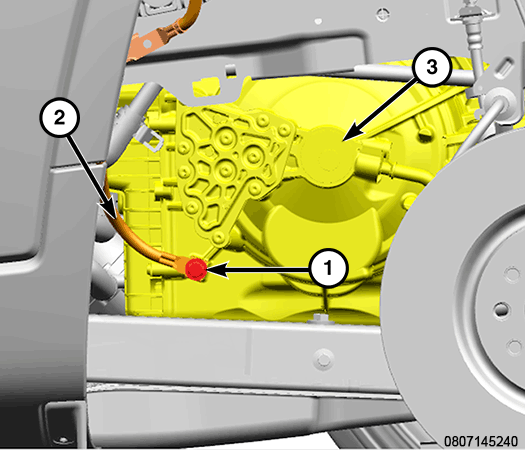

  11. Position the negative battery cable (2) to the transmission (3). Install the fastener (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  12. Install the left front wheel house splash shield. Refer to INSTALLATION .
  13. Lower the vehicle.
  14. Install the battery.
  15. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
