Switch-Window/Door Lock-Driver C1 (Base) Connector End View (D2300A)

Harness-Family: Door_Front_Driver

Color: GRAY

Gender: FEMALE

Part Number: 7283-6466-40

Part Description: KAIZEN YESC 2.8MM SUB ASSEMBLY

Connector No: D2300A

Option: BASE

Repair Kit Part Number: 68500067AA

Cavity Count: 6

Fig 1: Switch-Window/door Lock-Driver C1 Connector End View (BASE)

Courtesy of CHRYSLER

Fig 2: Switch-Window/door Lock-Driver C1 Isometric View (BASE)

Courtesy of CHRYSLER

Fig 3: Switch-Window/door Lock-Driver C1 Wire Insertion View (BASE)

Courtesy of CHRYSLER

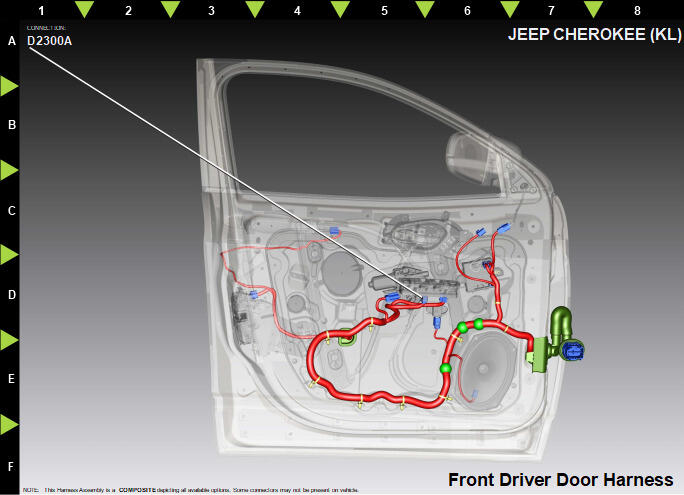

Fig 4: Switch-Window/door Lock-Driver C1 Component Location View (BASE)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q150	OG/VT	2.0	PWR WINDOW SW LOCK OUT FEED RR LT	N/A
2	Q151	OG/WH	2.0	PWR WINDOW SW LOCK OUT FEED RR RT	N/A
3	F981	PK/YE	2.0	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
4	Q21	OG/WH	2.0	DRIVER WINDOW DRIVER (DOWN)	N/A
5	Z919	BK	2.0	GROUND	N/A
