Fan, Cooling: Description

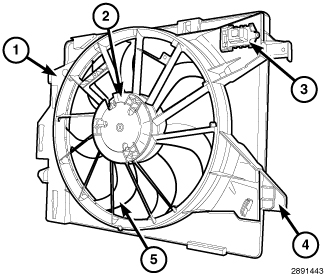

The electric radiator fan is mounted to the back side of the radiator. The radiator fan assembly consists of the fan shroud (1), electric motor (2), resistor (3), and a fan blades (5) as an assembly. (2 cooling fan systems are available, standard and heavy duty. Illustration is the standard cooling system. Heavy duty cooling system will have 2 fans.)
