Heater, Engine Block: Installation

  1. Thoroughly clean the engine block core hole and engine block heater seat.

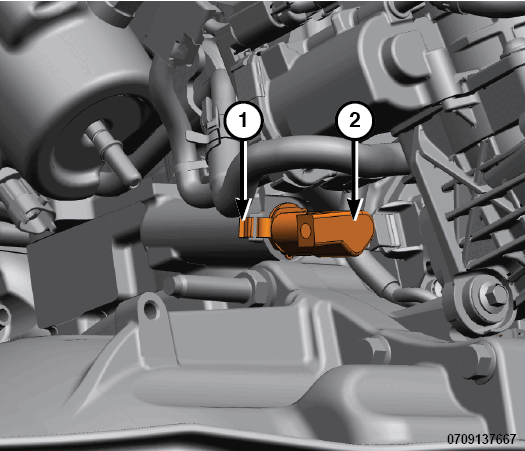

    GC0182733Courtesy of CHRYSLER GROUP, LLC
  2. Insert the engine block heater (1) and engage the clip.
  3. Connect the power cord (2) to the engine block heater.
  4. Install the intake manifold. Refer to INSTALLATION .
