Sensor, Coolant Temperature: Installation

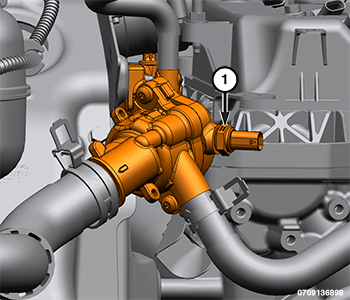

- Install the engine coolant temperature sensor (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
- Connect the engine coolant temperature sensor harness connector (1).
- Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION .
- Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
