Module-HVAC C1 (Standard) Connector End View (D3828A)

Harness-Family: HVAC

Color: GRAY

Gender: FEMALE

Part Number: 13530010

Part Description: Not Available

Connector No: D3828A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 36

Fig 1: Module-Hvac C1 Connector End View (Standard)

Courtesy of CHRYSLER

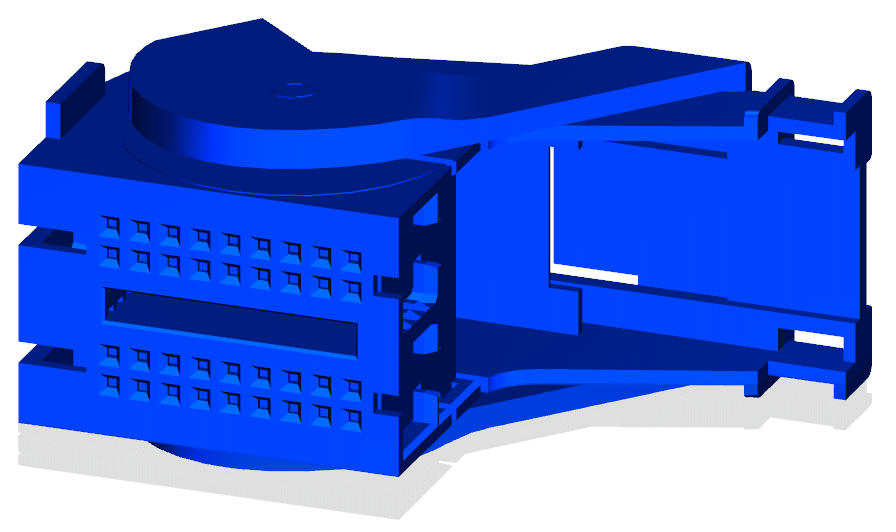

Fig 2: Module-Hvac C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Hvac C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

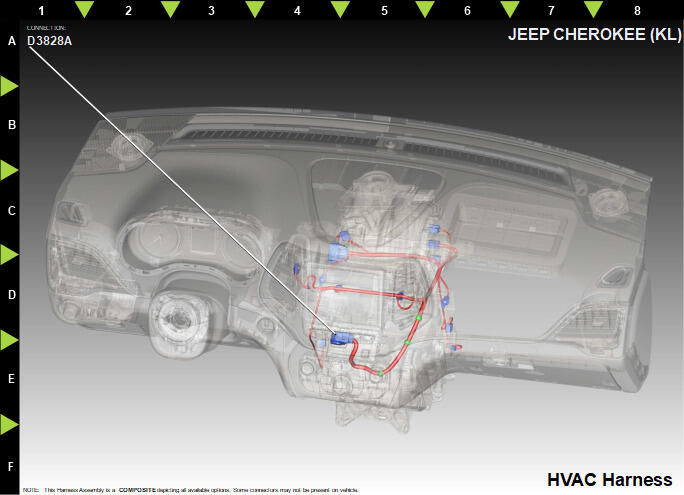

Fig 4: Module-Hvac C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F948	PK/DG	0.35	FUSED IGNITION	N/A
2	A937	RD	0.35	FUSED B(+)	N/A
4	D101	DG	0.35	CAN IHS (+)	N/A
5	D102	WH	0.35	CAN IHS (-)	N/A
6	Z912	BK	0.35	GROUND	N/A
7	L91	WH/DB	0.35	HAZARD SWITCH SENSE	N/A
8	C139	DB/WH	0.35	LEFT BLEND DOOR DRIVER 2	N/A
9	C137	DB/BK	0.35	LEFT BLEND DOOR DRIVER 1	N/A
10	C27	BU/WH	0.50	A/C COMPRESSOR CONTROL	N/A
15	C56	GN/DB	0.50	FRONT BLOWER PWM CONTROL	N/A
16	C229	DB	0.50	BLOWER MOTOR RETURN	N/A
17	C142	DB/OG	0.35	DEFROST MODE DRIVE	N/A
18	C143	BN/DB	0.35	PANEL MODE DRIVE	N/A
19	C134	OG/WH	0.35	RIGHT PANEL TEMPERATURE SENSOR SIGNAL	N/A
20	C162	YE/GY	0.35	LEFT PANEL TEMPERATURE SENSOR SIGNAL	N/A
21	C21	DG/DB	0.35	EVAPORATOR TEMPERATURE SENSOR SIGNAL	N/A
22	C235	VT/WH	0.35	MODE DOOR SIGNAL	N/A
23	C26	WH/OG	0.35	REFERENCE VOLTAGE SUPPLY	N/A
24	C233	YE/DB	0.35	LEFT BLEND DOOR SIGNAL	N/A
25	C333	WH/YE	0.35	SIGNAL GROUND	N/A
26	C140	DB/YE	0.35	OUTSIDE AIR INLET DRIVE	N/A
27	C141	DB/DG	0.35	RECIRCULATION AIR INLET DRIVE	N/A
28	C130	OG/DB	0.35	RIGHT FLOOR TEMPERATURE SENSOR SIGNAL	N/A
29	C164	VT/DB	0.35	LEFT FLOOR TEMPERATURE SENSOR SIGNAL	N/A
30	C131	BU	0.35	SENSOR GROUND	AUTO
30	C131	DB	0.35	SENSOR GROUND	MANUAL
31	C224	RD/YE	0.35	RIGHT BLEND DOOR SIGNAL	N/A
32	C24	OG/RD	0.35	RIGHT BLEND DOOR FEED	N/A
33	C32	GY/YE	0.35	RECIRCULATION DOOR DRIVER	N/A
35	C138	DB/RD	0.35	RIGHT BLEND DOOR DRIVER 2	N/A
36	C136	DG/WH	0.35	RIGHT BLEND DOOR DRIVER 1	N/A
