Module-Park Assist C2 (Trailer Tow) Connector End View (D3867B)

Harness-Family: TRAILER_TOW

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-9029-40

Part Description: KAIZEN 0.64 SYSTEM UNSEALED

Connector No: D3867B

Option: TRAILER TOW

Repair Kit Part Number: 68080558AA

Cavity Count: 8

Fig 1: Module-Park Assist C2 Connector End View (TRAILER TOW)

Courtesy of CHRYSLER

Fig 2: Module-Park Assist C2 Isometric View (TRAILER TOW)

Courtesy of CHRYSLER

Fig 3: Module-Park Assist C2 Wire Insertion View (TRAILER TOW)

Courtesy of CHRYSLER

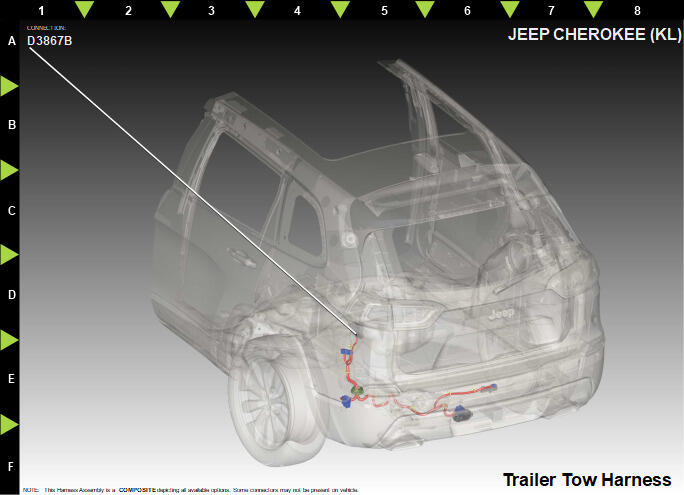

Fig 4: Module-Park Assist C2 Component Location View (TRAILER TOW)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D701	WH/BU	0.35	PARK ASSIST SIGNAL 8	N/A
2	D703	WH/OG	0.35	PARK ASSIST SIGNAL 9	N/A
3	D704	WH/DG	0.35	PARK ASSIST SIGNAL 10	N/A
4	X700	GY/OG	0.50	REAR PARK ASSIST SENSOR SUPPLY	N/A
5	D710	WH	0.35	PARK ASSIST SIGNAL 11	N/A
6	D712	WH/DB	0.35	PARK ASSIST SIGNAL 12	N/A
7	D700	WH/GY	0.35	PARK ASSIST SIGNAL 7	N/A
8	X750	GY/BU	0.50	REAR PARK ASSIST SENSOR GROUND	N/A
