Motor-Seat Adjuster-Rear Driver Vertical (Memory) Connector End View (D3034A)

Harness-Family: Seat_Cshn_Driver

Color: BLACK

Gender: FEMALE

Part Number: 1379217-3_1379218-2

Part Description: Not Available

Connector No: D3034A

Option: MEMORY

Repair Kit Part Number: Not Available

Cavity Count: 5

Fig 1: Motor-Seat Adjuster-Rear Driver Vertical Connector End View (MEMORY)

Courtesy of CHRYSLER

Fig 2: Motor-Seat Adjuster-Rear Driver Vertical Isometric View (MEMORY)

Courtesy of CHRYSLER

Fig 3: Motor-Seat Adjuster-Rear Driver Vertical Wire Insertion View (MEMORY)

Courtesy of CHRYSLER

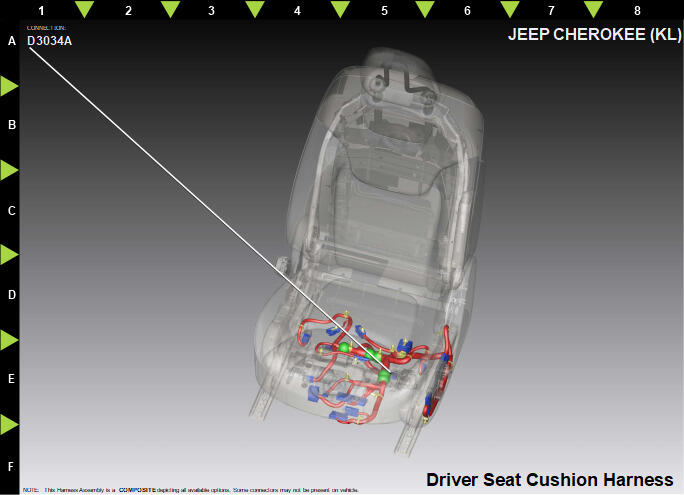

Fig 4: Motor-Seat Adjuster-Rear Driver Vertical Component Location View (MEMORY)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P111	GN/YE	0.75	DRIVER SEAT REAR VERTICAL UP DRIVER	LHD
1	P113	GN/WH	0.75	DRIVER SEAT REAR VERTICAL DOWN DRIVER	RHD
2	G402	VT/DB	0.35	DRIVER SEAT REAR VERTICAL POSITION SENSE	N/A
3	N0	NA	0	NO CONNECT	N/A
4	G492	BU/VT	0.35	DRIVER SEAT REAR VERTICAL SENSOR GROUND	N/A
5	P113	GN/WH	0.75	DRIVER SEAT REAR VERTICAL DOWN DRIVER	LHD
5	P111	GN/YE	0.75	DRIVER SEAT REAR VERTICAL UP DRIVER	RHD
