Unit-Power Transfer (3.2L) Connector End View (D2798A)

Harness-Family: ENGINE

Color: BLACK

Gender: FEMALE

Part Number: 2272975-5

Part Description: Not Available

Connector No: D2798A

Option: 3.2L

Repair Kit Part Number: 68364260AA

Cavity Count: 6

Fig 1: Unit-Power Transfer Connector End View (3.2L)
GCWD1013968Courtesy of CHRYSLER

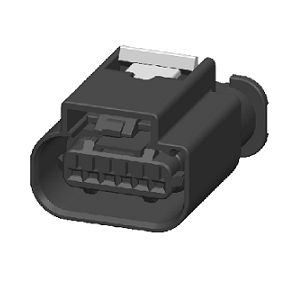

Fig 2: Unit-Power Transfer Isometric View (3.2L)
GCWD1011822Courtesy of CHRYSLER
Fig 3: Unit-Power Transfer Wire Insertion View (3.2L)
GCWD1009330Courtesy of CHRYSLER

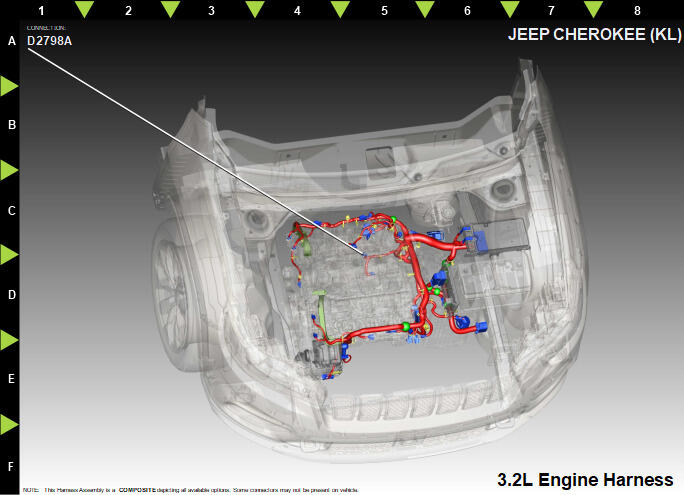

Fig 4: Unit-Power Transfer Component Location View (3.2L)
GCWD1322515Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D442 WH/DB 0.50 CAN C (+) N/A
2 D443 WH/OG 0.50 CAN C (-) N/A
3 Z904 BK 0.75 GROUND N/A
4 A197 RD/DG 0.75 FUSED B(+) N/A
5 F946 PK/GN 0.35 FUSED IGNITION RUN/START CONTROL OUTPUT N/A
6 N0 NA 0 NO CONNECT N/A
