Module, Emergency Assistance (EAM): Installation: Speaker

Courtesy of CHRYSLER GROUP, LLC

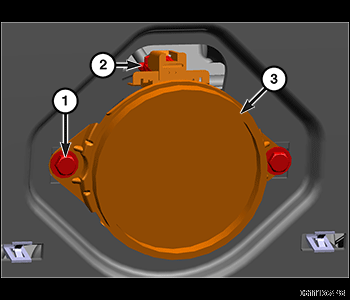

1. Position the Emergency Assistance Module (EAM) Speaker (3) in the dash to connect the instrument panel wire harness connector (2).
2. Install the EAM speaker and tighten the fasteners securely.

   Courtesy of CHRYSLER GROUP, LLC

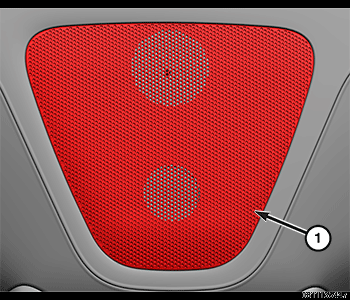

3. Install the center dash speaker grill (1) making sure the lock tabs are fully engaged with the locking clips.
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
