Module-Body Control C5 (Standard) Connector End View (D2762E)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13923619_15471028

Part Description: Not Available

Connector No: D2762E

Option: Standard

Repair Kit Part Number: 68265992AA

Cavity Count: 32

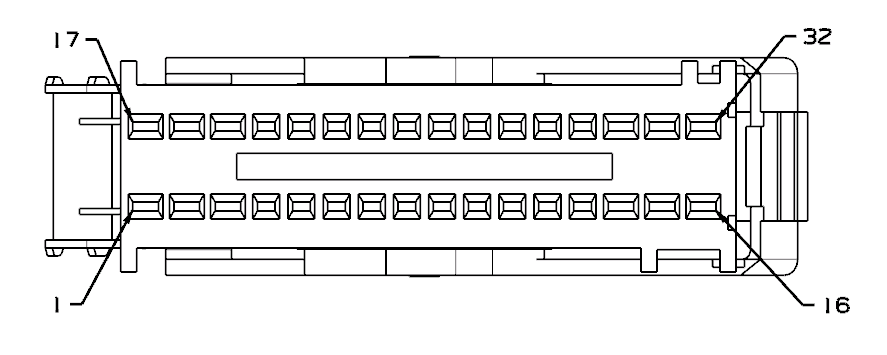

Fig 1: Module-Body Control C5 Connector End View (Standard)

Courtesy of CHRYSLER

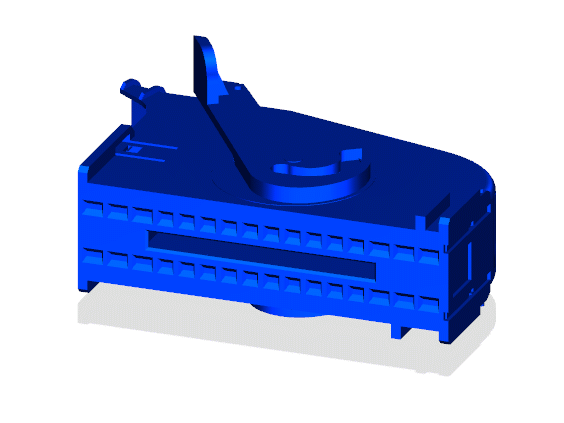

Fig 2: Module-Body Control C5 Isometric View (Standard)

Courtesy of CHRYSLER

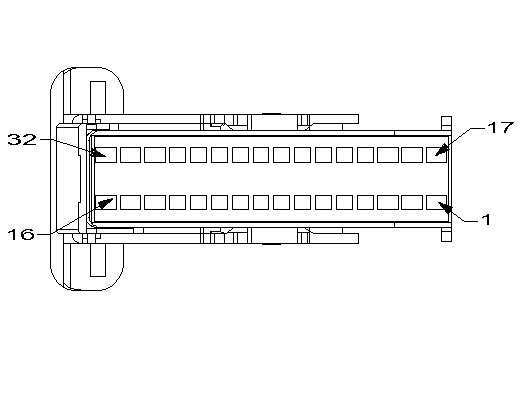

Fig 3: Module-Body Control C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

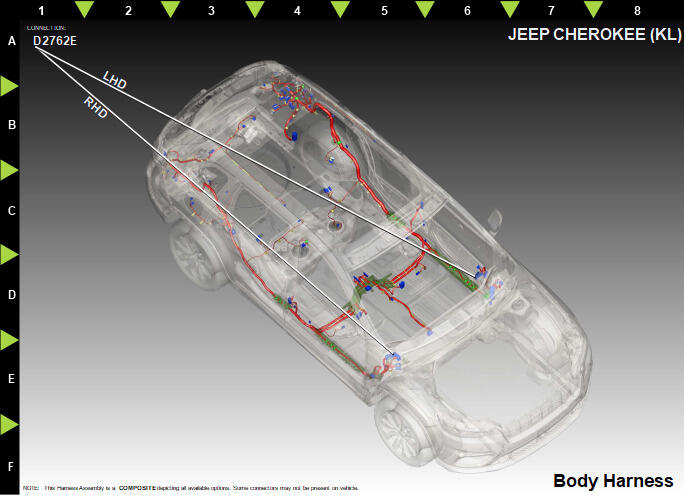

Fig 4: Module-Body Control C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	P303	BG	1.0	PASSENGER DOOR UNLOCK DRIVER	N/A
4	A939	RD	0.50	FUSED B(+)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	A959	RD	0.50	FUSED B(+)	N/A
7	N0	NA	0	NO CONNECT	N/A
8	P237	DG/BG	1.0	SECONDARY UNLOCK DRIVER	N/A
9	P235	GN/BG	1.0	SECONDARY LOCK DRIVER	N/A
10	N0	NA	0	NO CONNECT	N/A
11	A907	RD	0.50	FUSED B(+)	WITH ONE TOUCH DRIVE WDO
11	N0	NA	0	NO CONNECT	WITHOUT ONE TOUCH DRIVE WDO
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	P778	GN/BU	1.0	DOOR LOCK RELAY OUTPUT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	WITH POWER LIFTGATE
18	P31	BG/YE	0.75	DECKLID/LIFTGATE RELEASE DRIVER	WITHOUT POWER LIFTGATE
19	N0	NA	0	NO CONNECT	N/A
20	W12	BN/OG	0.75	REAR WIPER RELAY CONTROL	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	N0	NA	0	NO CONNECT	N/A
25	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
26	P371	BG/BN	0.50	DOOR LOCK SW RTN DRIV	N/A
27	N0	NA	0	NO CONNECT	N/A
28	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
29	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
30	X4	DG/WH	1.5	HORN RELAY CONTROL	N/A
31	N0	NA	0	NO CONNECT	N/A
32	P1	BG/GN	0.75	DRIVER DOOR UNLOCK DRIVER	N/A
