Module-Body Control C6 (Standard) Connector End View (D2762F)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 13589779_13589780

Part Description: Not Available

Connector No: D2762F

Option: Standard

Repair Kit Part Number: 68335231AA

Cavity Count: 60

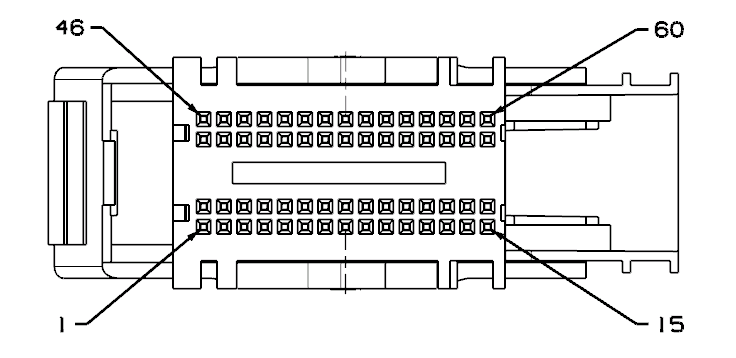

Fig 1: Module-Body Control C6 Connector End View (Standard)

Courtesy of CHRYSLER

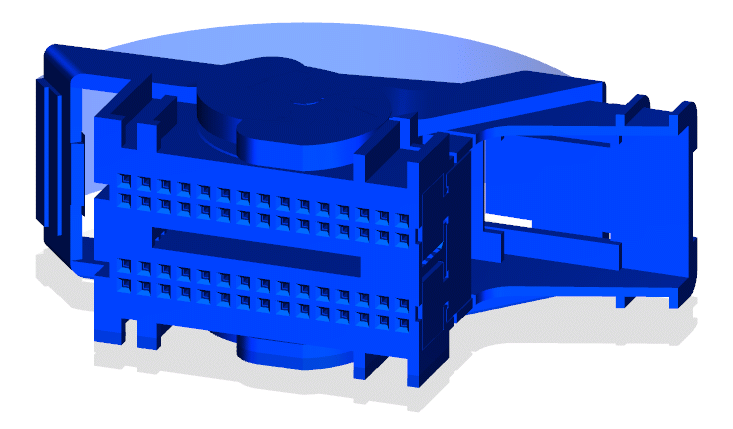

Fig 2: Module-Body Control C6 Isometric View (Standard)

Courtesy of CHRYSLER

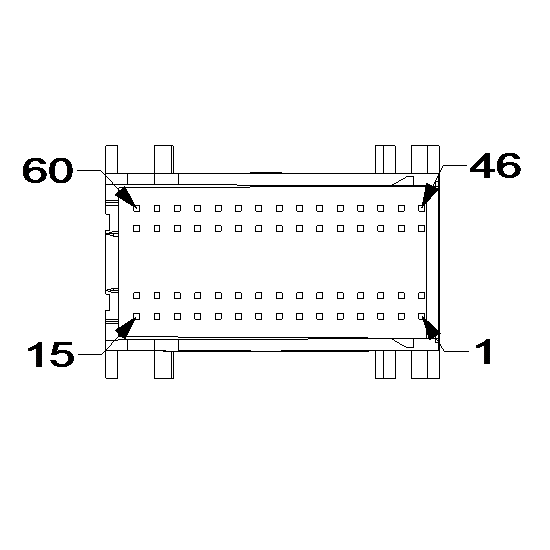

Fig 3: Module-Body Control C6 Wire Insertion View (Standard)

Courtesy of CHRYSLER

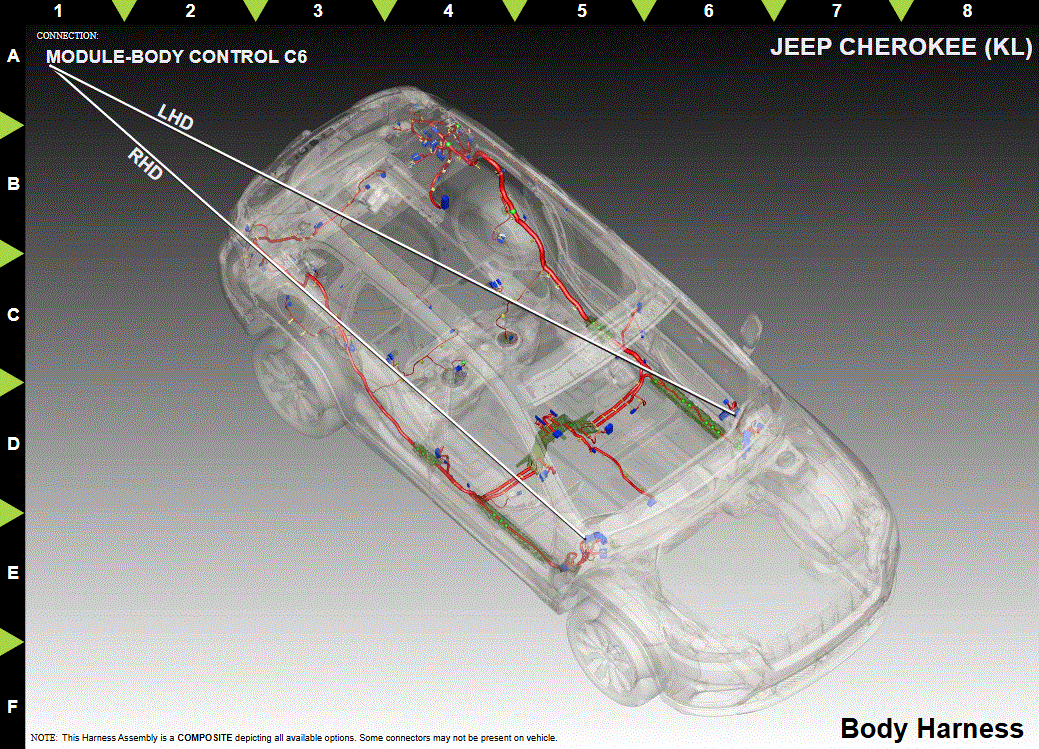

Fig 4: Module-Body Control C6 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L1	WH/GN	0.75	BACKUP LAMP FEED	N/A
2	L63	WH/DG	0.75	LEFT REAR TURN LAMP DRIVER	N/A
3	L56	WH/VT	0.50	BRAKE LAMP SWITCH OUTPUT	N/A
4	L77	WH/BN	0.50	LEFT FRONT PARK LAMP DRIVER	N/A
5	L78	WH/OG	0.50	RIGHT FRONT PARK LAMP DRIVER	N/A
6	N0	NA	0	NO CONNECT	N/A
7	P807	GN/BU	0.35	INVERTER SWITCH SIGNAL	WITH INVERTER
7	P827	GN/DB	0.35	INVERTER SWITCH SIGNAL	WITHOUT INVERTER
8	B122	DG/GN	0.50	BRAKE LAMP ACTIVATION RELAY CONTROL	BUX
8	N0	NA	0	NO CONNECT	NAFTA
9	N0	NA	0	NO CONNECT	N/A
10	G38	GY	0.35	UGDO ENABLE CONTROL CIRCUIT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	M53	YE/VT	0.35	REAR DOME LAMP CONTROL	N/A
14	D401	OG	0.35	LIN BUS CBC 1	N/A
15	N0	NA	0	NO CONNECT	N/A
16	L891	WH/OG	0.75	REAR FOG LAMP FEED	BUX
16	N0	NA	0	NO CONNECT	NAFTA
17	L54	WH/GN	0.75	RIGHT STOP LAMP DRIVER	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	L551	BG/BN	0.50	LEFT FRONT LIGHTING FAULT SENSE	N/A
21	C115	DB	0.35	DEFOGGER RELAY CONTROL	N/A
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	G109	BK	0.75	FUEL LEVEL SENSE RETURN	N/A
25	N4	DB/WH	0.75	FUEL LEVEL SENSOR SIGNAL	N/A
26	W17	BN/GN	0.75	REAR WIPER PARK SWITCH SENSE	N/A
27	G161	VT/DG	0.50	LEFT DOOR LOCK SWITCH STATUS	ONE TOUCH DOWN WDO
27	N0	NA	0	NO CONNECT	WITHOUT ONE TOUCH DOWN WDO
28	D402	OG/VT	0.50	LIN BUS CBC 2	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	L7	WH/YE	0.75	PARK LAMP RELAY OUTPUT	N/A
32	L89	WH/YE	0.50	LEFT FRONT FOG LAMP CONTROL	N/A
33	G76	VT/YE	0.50	RIGHT REAR DOOR AJAR SWITCH SENSE	N/A
34	N0	NA	0	NO CONNECT	N/A
35	G78	VT/OG	0.35	DECKLID/LIFTGATE AJAR SWITCH SENSE	N/A
36	G77	VT/GY	0.50	LEFT REAR DOOR AJAR SWITCH SENSE	N/A
37	G31	VT/GN	0.50	AAT SIGNAL	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
40	L563	WH/GY	0.50	LEFT REAR LIGHTING FAULT SENSE	N/A
41	N0	NA	0	NO CONNECT	N/A
42	N0	NA	0	NO CONNECT	N/A
43	G755	VT/BG	0.50	DRIVER DOOR SECONDARY AJAR SWITCH SENSE	N/A
44	N0	NA	0	NO CONNECT	N/A
45	N0	NA	0	NO CONNECT	N/A
46	L90	WH/OG	0.50	RIGHT FRONT FOG LAMP CONTROL	N/A
47	L70	WH/GY	0.50	FUSED PARK LAMP FEED	N/A
48	L52	WH	0.75	LEFT STOP LAMP DRIVER	N/A
49	B222	DG/WH	0.50	VEHICLE SPEED SIGNAL 2	WITH SUNROOF
49	N0	NA	0	NO CONNECT	WITHOUT SUNROOF
50	G75	VT	0.50	DRIVER DOOR AJAR SWITCH SENSE	N/A
51	N0	NA	0	NO CONNECT	N/A
52	G931	VT/BN	0.50	SENSOR GROUND	N/A
53	G74	VT/WH	0.50	PASSENGER DOOR AJAR SWITCH SENSE	N/A
54	L562	WH/BG	0.50	RIGHT REAR LIGHTING FAULT SENSE	N/A
55	L552	BG/OG	0.50	RIGHT FRONT LIGHTING FAULT SENSE	N/A
56	N0	NA	0	NO CONNECT	N/A
57	M20	YE/BU	0.35	DOME LAMP CONTROL	N/A
58	M108	YE/BU	0.50	AMBIENT LIGHTING CONTROL	N/A
59	N0	NA	0	NO CONNECT	N/A
60	N0	NA	0	NO CONNECT	N/A
